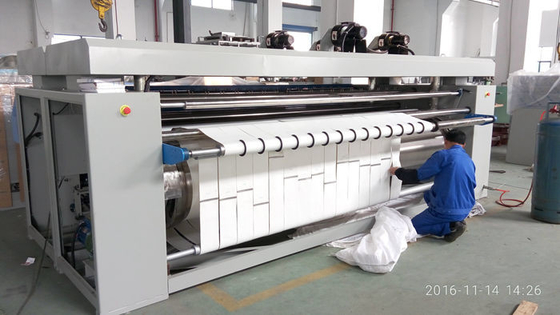

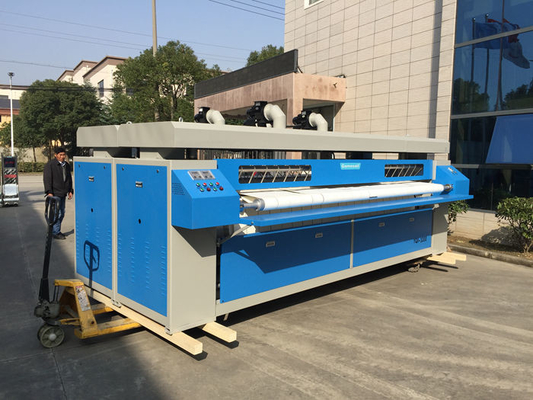

LPG Heated 304 Stainless Steel Roller Bed Sheet 2500mm Double Roller Flat Work Ironer Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Capacity: | 304 Stainless Steel & Sandblasting | Heating Type: | Electric, Steam, Gas |
|---|---|---|---|
| Automatic: | Automatic | Rated Voltage: | 380V,400V,415V,440V,220V |
| Width: | 1500,2500,2800,3000,3300 | HS Code: | 8420100001 |
| Cylnder Amount: | 1-5 | ||
| High Light: | linen press machine,industrial ironing equipment |
||
LPG Heated 304 Stainless Steel Roller Bed Sheet 2500mm Double Roller Flat Work Ironer Machine
Featurs
Patented of infrared heating technology (Patent no.201320488280.6)
Main and small rollers made of stainless steel, no pullotion & corrosion.
Roller thickness 4mm, Safety under high steam pressure.
VFD inverter system.
Main bearing and revolving joint with elastic design to protect the machine from the influence of heated and cooled.
Combined type design makes the rollers easy to upgrade to double roller, three roller and more, convenience to customers and help to save the cost.
Big wrapping angles make ironing fast and flat.
Finger protection and emergency stop for more safety.
Space saving installation against the wall is possible.
Electric,steam or Gas/LPG heating.
Technical Parameters
| TYPE | YZI-1500G | YZI-2500G | YZI-2800G | YZI-3000G | YZII-2800G | YZII-3000G | YZII-3300G | |
| ROLLER | ||||||||
| Roller diameter | mm | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
| Roller Length | mm | 1500 | 2500 | 2800 | 3000 | 2800 | 3000 | 3300 |
| Number of rollers | 1 | 1 | 1 | 1 | 2 | 2 | 2 | |
| POWER | ||||||||
| Drive motor | kw | 1.10 | 1.10 | 1.10 | 1.10 | 1.50 | 1.50 | 1.50 |
| Inverter | kw | 0.75 | 0.75 | 0.75 | 0.75 | 1.50 | 1.50 | 1.50 |
| HEATING | ||||||||
| Electric | kw | 20 | 24 | 24 | 40 | 48 | 60 | / |
| Steam consumption | kg | 50-70 | 70-100 | 80-110 | 90-120 | 180-220 | 200-240 | 300.0 |
| Steam pressure | mpa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Gas | kg | |||||||
| ROLLER SPEED | m/min | 9 | 9 | 9 | 9 | 14 | 14.00 | 14.00 |
| CONNECTION | ||||||||
| Steam | inch | G3/2" | G3/2" | G3/2" | G3/2" | G3/2" | G3/2" | G3/2" |
| Drain | inch | G1" | G1" | G1" | G1" | G1" | G1" | G1" |
| DIMENTIONS | ||||||||
| Size WxDxH | mm | 2580x1100x1810 | 3580x1430x1340 | 3880x1430x1340 | 4080x1430x1340 | 3880x2380x1340 | 4080x2380x1340 | 4380x2380x1340 |
| N.W. | kg | 1100 | 1350 | 1430 | 1480 | 2540 | 2620 | 2750 |
Company Profile
Better quality
Our company has a team of engineering technical personnel who have rich professional knowledge and be engaged in washing equipment design for 20 years. International famous experts have developed industrial washing machine series to conform international trend and to meet China's national conditions according to their understanding of technology and applications both in China and abroad.
More reasonable price
Gamesail's target is that "It will always be the supplier who provides best cost performance commercial washing equipmentsin China."
More professional service
"More professional service" is the tenet which brings sustainable development to our company. Gamesail has a team of expert engaged in research, manufacturing, selling, service of washing equipments. They can not only supply topping equipment for users, providing best and timely after-sales service, but also offer integrated value-added solutions to meet the customer's real needs hundred percent.
Package & Delivery
Delivery from Shanghai Port, can reach to anyport around the world. With Perfect Package, Loading and Freight, keep the users get the completed machines and timely.
