High Efficiency Flatwork Ironing Machine Low Energy Consumption For Laundry Plant
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Flatwork Ironer | Material: | 304 Stainless Steel & Sandblasting |
|---|---|---|---|
| Heating Type: | Electric, Steam, Gas | Automatic: | Full Automatic |
| Rated Voltage: | 380V,400V,415V,440V,220V | Width: | 1500,2500,2800,3000,3300 |
| HS Code: | 8420100001 | Cylnder Amount: | 1-5 |
| Highlight: | linen press machine,industrial ironing equipment |
||
High Efficiency Flatwork Ironing Machine Low Energy Consumption For Laundry Plant
ADVANTAGE
- Patented of infrared heating technology (Patent no.201320488280.6)
- Main and small rollers made of stainless steel, no pullotion & corrosion.
- Roller thickness 4mm, Safety under high steam pressure.
- Korea LS inverter system.
- Main bearing and revolving joint with elastic design to protect the machine from the influence of heated and cooled.
- Combined type design makes the rollers easy to upgrade to double roller, three roller and more, convenience to customers and help to save the cost.
- Big wrapping angles make ironing fast and flat.
- Finger protection and emergency stop for more safety.
- Space saving installation against the wall is possible.
- Front or rear return available.
- Electric,steam or Gas/LPG heating.
PRODUCT FEATURES
Parameter
| TYPE | YZI-1500G | YZI-2500G | YZI-2800G | YZI-3000G | YZII-2800G | YZII-3000G | YZII-3300G | |
| ROLLER | ||||||||
| Roller diameter | mm | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
| Roller Length | mm | 1500 | 2500 | 2800 | 3000 | 2800 | 3000 | 3300 |
| Number of rollers | 1 | 1 | 1 | 1 | 2 | 2 | 2 | |
| POWER | ||||||||
| Drive motor | kw | 1.10 | 1.10 | 1.10 | 1.10 | 1.50 | 1.50 | 1.50 |
| Inverter | kw | 0.75 | 0.75 | 0.75 | 0.75 | 1.50 | 1.50 | 1.50 |
| HEATING | ||||||||
| Electric | kw | 20 | 24 | 24 | 40 | 48 | 60 | / |
| Steam consumption | kg | 50-70 | 70-100 | 80-110 | 90-120 | 180-220 | 200-240 | 300.0 |
| Steam pressure | mpa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Gas | kg | |||||||
| ROLLER SPEED | m/min | 9 | 9 | 9 | 9 | 14 | 14.00 | 14.00 |
| CONNECTION | ||||||||
| Steam | inch | G3/2" | G3/2" | G3/2" | G3/2" | G3/2" | G3/2" | G3/2" |
| Drain | inch | G1" | G1" | G1" | G1" | G1" | G1" | G1" |
| DIMENSIONS | ||||||||
| Width | mm | 2580 | 3580 | 3880 | 4080 | 3880 | 4080 | 4380 |
| Depth | mm | 1100 | 1430 | 1430 | 1430 | 2280 | 2380 | 2380 |
| Height | mm | 1340 | 1340 | 1340 | 1340 | 1340 | 1340 | 1340 |

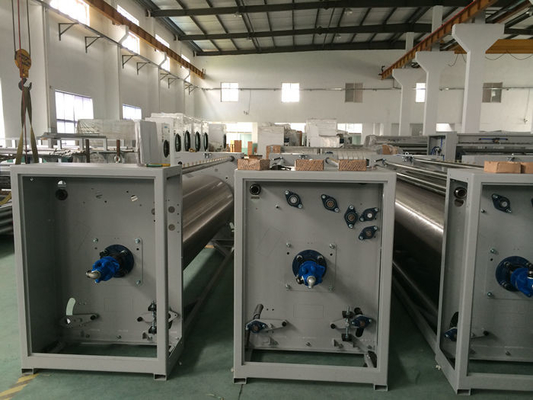

THE FACTORY
Shanghai Gamesail Washing Machine CO.LTD was prepared at the beginning of 2002. During two years preparations, we researched more than 70 varieties washing equipments, including washing extractor series, drying equipment series, ironing equipment series, dry-cleaning equipment, related auxiliary equipment, etc. In 2004, we officially provided these equipments for the market.
Our company has a team of engineering technical personnel who have rich professional knowledge and be engaged in washing equipment design for 20 years. International famous experts have developed industrial washing machine series to conform international trend and to meet China's national conditions according to their understanding of technology and applications both in China and abroad.
Gamesail pursues that It will always be the supplier who provides best cost performance commercial washing equipments in China.
Gamesails quality: Standing on a user's point of view, "Think for the user; plan for the user. From design, trial-manufacture, small batch production, mass production to equipment commissioning and operator training are so integrated into the human thoughts and ideas, reflecting Gamesail's "service concept."
Gamesails Service: on the basis of our experience of manufacture and sales over the years, we deeply appreciate the importance of after-sales service. Timely after-sales service can guarantee the normal operation of equipments so as to improve utilization of equipments, reaching maximum gain with minimal investment. After-sales service is the life for us; our survival and our development are based on clients satisfaction.
Thus, when Gamesail was built from the beginning, the first focus is to establish perfect after-sales service system. We consider after-sales service staffing immediately while we are setting up sales offices in a place. Even when some offices may not have the sales staffs, it must have
service personnels.
Our target is that where there are sales, there are service personnels, wh
