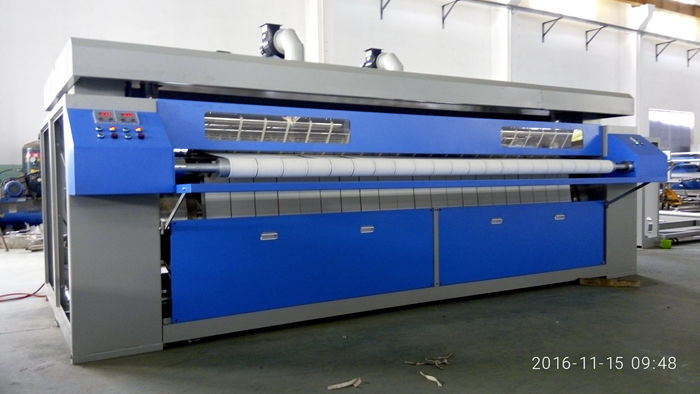

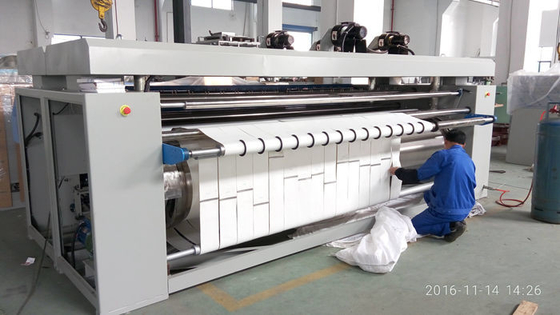

Steam / Gas / Electric Heated Flatwork Ironing Machine Long Lifetime Clyinder Roller 3300mm

Large Image : Steam / Gas / Electric Heated Flatwork Ironing Machine Long Lifetime Clyinder Roller 3300mm Get Best Price

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	Gamesail
Certification:	CE,ISO9001
Model Number:	YZ/YQ/YD

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$4000-$18000
Packaging Details:	Plywood Case for LCL, Plywood Pallet for FCL
Delivery Time:	5-30 work days
Payment Terms:	T/T, L/C,D/P, D/A,
Supply Ability:	100 Pcs/Month

Contact Now

Detailed Product Description

Capacity:	304 Stainless Steel & Sandblasting	Heating Type:	Electric, Steam, Gas
Automatic:	Automatic	Rated Voltage:	380V,400V,415V,440V,220V
Width:	1500,2500,2800,3000,3300	HS Code:	8420100001
Cylnder Amount:	1-5
High Light:	linen press machine , laundry press ironing machine

Steam / Gas / Electric Heated Flatwork Ironing Machine Long Lifetime Clyinder Roller 3300mm

Featurs

Patented of infrared heating technology (Patent no.201320488280.6)

Main and small rollers made of stainless steel, no pullotion & corrosion.

Roller thickness 4mm, Safety under high steam pressure.

VFD inverter system.

Main bearing and revolving joint with elastic design to protect the machine from the influence of heated and cooled.

Combined type design makes the rollers easy to upgrade to double roller, three roller and more, convenience to customers and help to save the cost.

Big wrapping angles make ironing fast and flat.

Finger protection and emergency stop for more safety.

Space saving installation against the wall is possible.

Electric,steam or Gas/LPG heating.

Technical Parameters

TYPE		YZI-1500G	YZI-2500G	YZI-2800G	YZI-3000G	YZII-2800G	YZII-3000G	YZII-3300G
ROLLER
Roller diameter	mm	800	800	800	800	800	800	800
Roller Length	mm	1500	2500	2800	3000	2800	3000	3300
Number of rollers		1	1	1	1	2	2	2
POWER
Drive motor	kw	1.10	1.10	1.10	1.10	1.50	1.50	1.50
Inverter	kw	0.75	0.75	0.75	0.75	1.50	1.50	1.50
HEATING
Electric	kw	20	24	24	40	48	60	/
Steam consumption	kg	50-70	70-100	80-110	90-120	180-220	200-240	300.0
Steam pressure	mpa	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
Gas	kg
ROLLER SPEED	m/min	9	9	9	9	14	14.00	14.00
CONNECTION
Steam	inch	G3/2"	G3/2"	G3/2"	G3/2"	G3/2"	G3/2"	G3/2"
Drain	inch	G1"	G1"	G1"	G1"	G1"	G1"	G1"
DIMENTIONS
Size WxDxH	mm	2580x1100x1810	3580x1430x1340	3880x1430x1340	4080x1430x1340	3880x2380x1340	4080x2380x1340	4380x2380x1340
N.W.	kg	1100	1350	1430	1480	2540	2620	2750

Company Profile

Steam / Gas / Electric Heated Flatwork Ironing Machine Long Lifetime Clyinder Roller 3300mm 0

Steam / Gas / Electric Heated Flatwork Ironing Machine Long Lifetime Clyinder Roller 3300mm 1

Gamesail pursues that It will always be the supplier who provides best cost performance commercial washing equipments in China.
Gamesails quality: Standing on a user's point of view, "Think for the user; plan for the user. From design, trial-manufacture, small batch production, mass production to equipment commissioning and operator training are so integrated into the human thoughts and ideas, reflecting Gamesail's "service concept."
Gamesails Service: on the basis of our experience of manufacture and sales over the years, we deeply appreciate the importance of after-sales service. Timely after-sales service can guarantee the normal operation of equipments so as to improve utilization of equipments, reaching maximum gain with minimal investment. After-sales service is the life for us; our survival and our development are based on clients satisfaction.

Package & Delivery

Delivery from Shanghai Port, can reach to anyport around the world. With Perfect Package, Loading and Freight, keep the users get the completed machines and timely.
