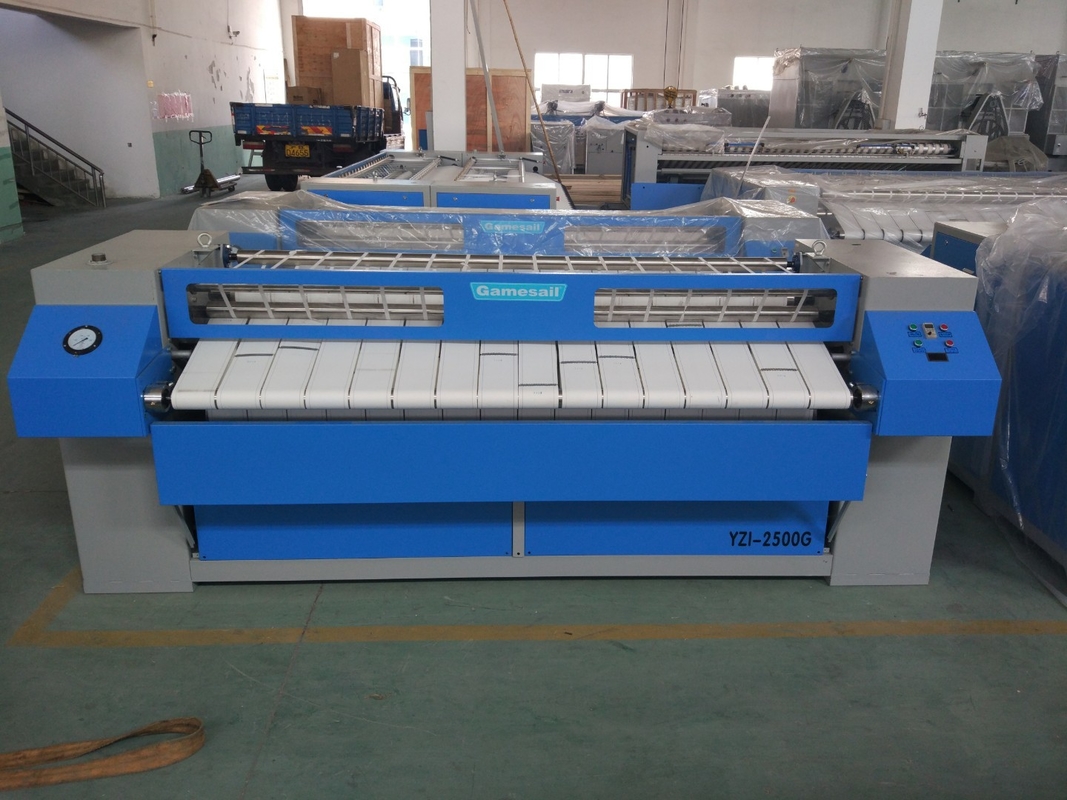

Electrical Heating Laundry Flatwork Ironer Flatwork Ironing Machine 0-39m/min

Large Image : Electrical Heating Laundry Flatwork Ironer Flatwork Ironing Machine 0-39m/min Get Best Price

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	Gamesail
Certification:	CE,ISO9001,ISO14001,SGS
Model Number:	YZ/YQ/YD

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$4000-$18000
Packaging Details:	Plywood Case for LCL, Plywood Pallet for FCL
Delivery Time:	5-30 work days
Payment Terms:	T/T, L/C,D/P, D/A,
Supply Ability:	100 Pcs/Month

Contact Now

Detailed Product Description

Capacity:	304 Stainless Steel & Sandblasting	Heating Type:	Electric, Steam, Gas
Automatic:	Automatic Ironer	Rated Voltage:	110V,220V,380V,400V,415V,440V
Width:	2500mm,2800mm,3000mm,3300mm	HS Code:	8420100001
Cylnder Amount:	1-5 Rollers	Ironing Speed:	0-39m/min
Usage:	Quilt Cover Flatwork Ironer Sheet Ironer
High Light:	linen press machine , industrial ironing equipment

Electrical Heating Laundry Flatwork Ironer Price Flat Ironing Equipment

Featurs

Patented of infrared heating technology (Patent no.201320488280.6)

Main and small rollers made of stainless steel, no pullotion & corrosion.

Roller thickness 4mm, Safety under high steam pressure.

VFD inverter system.

Main bearing and revolving joint with elastic design to protect the machine from the influence of heated and cooled.

Combined type design makes the rollers easy to upgrade to double roller, three roller and more, convenience to customers and help to save the cost.

Big wrapping angles make ironing fast and flat.

Finger protection and emergency stop for more safety.

Space saving installation against the wall is possible.

Electric,steam or Gas/LPG heating.

Technical Parameters

Type/Parameter	Unit	Y-2500IZ	Y-2800IZ	Y-3000IZ	Y-2800IIZ	Y-3000IIZ	Y-3300IIZ
Number of Drum		1	1	1	2	2	2
Diameter of Drum	mm	φ800	φ800	φ800	φ800	φ800	φ800
Maximum Width	mm	2500	2800	3000	2800	3000	3300
Maximum Speed	m/min	9	9	9	14	14	14
Highest Temperature	℃	160	160	160	160	160	160
Steam Pressure	Mpa	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6
Motor Power	Kw	1.1	1.1	1.1	1.5	1.5	1.5
Inverter Motor Power	Kw	1.5	1.5	1.5	1.5	1.5	1.5
Steam Pipe Diameter	Inch	G3/2''	G3/2''	G3/2''	G3/2''	G3/2''	G3/2''
Draining Pipe Diameter	Inch	G1''	G1''	G1''	G1''	G1''	G1''
Boundary Dimension
Width	mm	3580	3880	4080	3880	4080	4380
Depth	mm	1430	1430	1430	2380	2380	2380
Hight	mm	1340	1340	1340	1340	1340	1340
Weight	Kg	1350	1430	1480	2540	2620	2750

Type/Parameter	Unit	Y-3000IIIZ	Y-3300IIIZ	Y-3000IVZ	Y-3300IVZ	Y-3000VZ	Y-3300VZ
Number of Drum		3	3	4	4	5	5
Diameter of Drum	mm	φ800	φ800	φ800	φ800	φ800	φ800
Maximum Width	mm	3000	3300	3000	3300	3000	3300
Maximum Speed	m/min	19	19	24	24	29	29
Highest Temperature	℃	160	160	160	160	160	160
Steam Pressure	Mpa	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6
Motor Power	Kw	2.2	2.2	3	3	4	4
Inverter Motor Power	Kw	2.2	2.2	3.7	3.7	5.5	5.5
Steam Pipe Diameter	Inch	G3/2''	G3/2''	G3/2''	G3/2''	G3/2''	G3/2''
Draining Pipe Diameter	Inch	G1''	G1''	G1''	G1''	G1''	G1''
Boundary Dimension
Width	mm	4080	4380	4080	4380	4080	4380
Depth	mm	3330	3330	4280	4280	5230	5230
Hight	mm	1340	1340	1340	1340	1340	1340
Weight	Kg	3760	3950	4900	5150	6040	6350

Company Profile

Better quality
Our company has a team of engineering technical personnel who have rich professional knowledge and be engaged in washing equipment design for 20 years. International famous experts have developed industrial washing machine series to conform international trend and to meet China's national conditions according to their understanding of technology and applications both in China and abroad.

More reasonable price
Gamesail's target is that "It will always be the supplier who provides best cost performance commercial washing equipmentsin China."

More professional service
"More professional service" is the tenet which brings sustainable development to our company. Gamesail has a team of expert engaged in research, manufacturing, selling, service of washing equipments. They can not only supply topping equipment for users, providing best and timely after-sales service, but also offer integrated value-added solutions to meet the customer's real needs hundred percent.

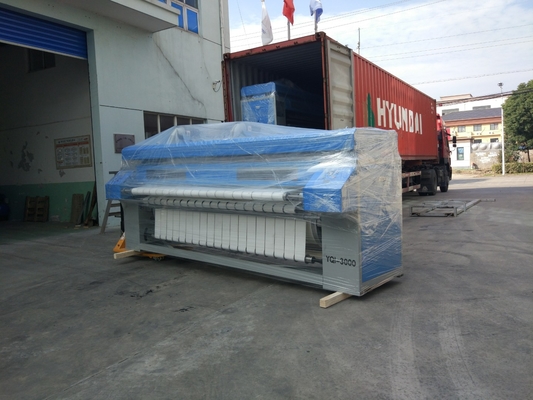

Package & Delivery

Delivery from Shanghai Port, can reach to anyport around the world. With Perfect Package, Loading and Freight, keep the users get the completed machines and timely.
