High Efficiency Barrier Washing Machine Big Size Water Saving For Laundry Plant
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Capacity:: | 15kg-120kg | Loading Type: | Front Loading,Back Unloading |
|---|---|---|---|
| Raw Material: | Stainless Steel 304 | Heating:: | Electric, Steam, Electric&Steam,Hot & Cold Water |
| Automatic: | Automatic & Manual | Voltage: | 110v,220v,380v,400v,440v |
| Packing: | Pallet Or Wooden Case | HS Code: | 84502000 |
| Suspension: | Airbag Suspension Shock Structure | Door: | Two Doors |
| Compartment: | One Drum With Two Compartments | ||
| High Light: | commercial laundry equipment,professional laundry equipment |
||

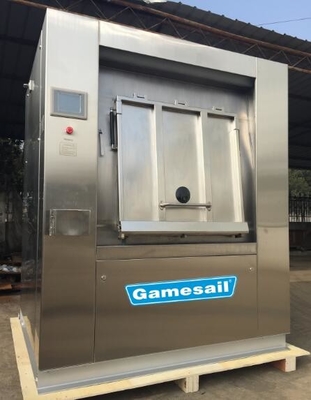

Inverter control two doors design 100kg barrier washing machine, barrier washer extractor
Shanghai Gamesail Washing Machine Co.,ltd is your full service laundry equipment manufacturer. Our goal is to build and nurture a full partnership with you to solve any challenge you may have when it comes to your laundry business. We have a large support staff with the experience and knowledge necessary to address any needs you may have.
Materials and Structure

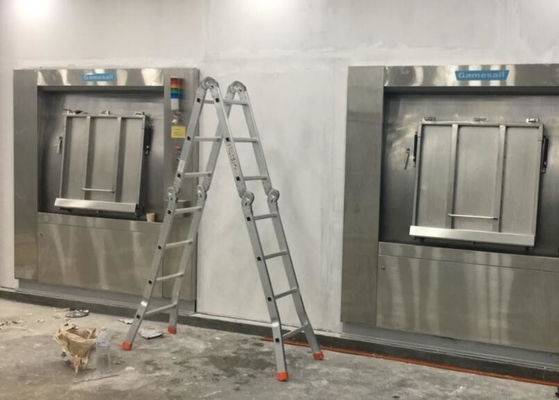

N-series barrier-type washers are able to meet the washing requirement of bacteria-free, dust-free and static-free. Laundry room is divided into two separated operating ranges "clean zone" and "non-clean zone" through isolated-type washer and isolation wall. Linen and dirty clothes will be loaded into the washing machine through the loading door which is openned on the side of the “non-clean zone". After washing is finished, the linen and clothes will be carried out from the "clean zone". And the air cleaning control system will prevent bacteria and dust particles flowing from the "non-clean zone" to "clean zone", thus to avoid secondary pollution and cross-infection of clean linen and clothes.
N-series isolated-type washers are with advanced technology, precise structure and excellent performance.It's convenient to maintain and economic for operation.It's widely used in hospitals, field of food processing, bio-pharmaceutical, nuclear power plants where it's extremely strict on dust-free and bacteria-free.
Main Features
1. Adopt touch-type programmable computer control system, it is highly automatic, safe, stability and anti-shock.
1. Adopt touch-type programmable computer control system, it is highly automatic, safe, stability and anti-shock.
2. It is with a drum with two compartments and two doors structure.Unloading and loading area is seperated.
3. We adopt world famous qualified parts suppliers.like Japan Yaskawa inverter,MIT V-belts and so on to ensure the high quality.
4. We have got CE,IEC,ISO,SASO certificates.
5. USB port microprocessor enables to reprogram freely&easily by PC.
6. We provide good pre-sales and after-sales service.We can make the laundry layout drawing for the clients. and lifelong technology conulting service.Easy access to all parts for maintenance.
7, The machines heating way have electric heating, steam heating and cold & hot water types.
PERSONAL CARD
PRODUCT FEATURES
| Type/Parameter | N1030 | N1050 | N1070 | N1100 | N1120 |
| Rated Capacity (kg) | 30 | 50 | 70 | 100 | 120 |
| Power of Motor (kW) | 4 | 5.5 | 7.5 | 11 | 15 |
| Diameter of Cold Water Entering Pipe (Inch) | 1'' | 1'' | 1'' | 1'' | 1'' |
| Diameter of Hot Water Entering Pipe (Inch) | 1'' | 1'' | 1'' | 1'' | 1'' |
| Diameter of Steam Pipe (Inch) | 1/2'' | 3/4'' | 1'' | 1'' | 1'' |
| Diameter of Draining Pipe (Inch) | 3'' | 3'' | 4'' | 4'' | 4'' |
| Boundary Diameter | |||||
| Width(mm) | 1320 | 1440 | 1610 | 1720 | 1980 |
| Length(mm) | 1100 | 1500 | 1500 | 1550 | 1710 |
| Height(mm) | 1820 | 1950 | 2140 | 2330 | 2330 |
| Weight(kg) | 1550 | 2250 | 2850 | 3250 | 3900 |
THE FACTORY
Located in the Shanghai, a beautiful city in China, Shanghai Gamesail washing machine CO., LTD owns many factory buildings, covering an area of 12000 square meters.
Founded in early 2002, with years’ efforts, we have developed a variety of machine series including water washing, drying, ironing, dry cleaning and other related auxiliary equipment, making the total variety exceeding 70. We are capable of providing diversified solutions to our customers to meet their different needs.
Our commercial washers are engineered with the finest components to ensure a longer lasting machine. Our inverter driven single motor design offers flexible operation, precise speed control and verified motor protection. Every component that comes into contact with the wash solution is Stainless Steel. The entire Gamesail line features our proven frame design, the strongest in the industry. The backbone of any machine is the frame and ours is designed and tested to stand the true rigorous demands of continuous operation in your laundry.
Why Choose Gamesail
1. Supply you top quality products with competitive price under the same quality level,
different products according to your different market demands.
2. Strictly control the whole production process and guarantee punctual delivery, Test each
of our products one by one before packing to ensure the quality.
3. Supply you a good pre-sale, in-sale and after-sale service, We're not just working partners,
but also friends and family.
4. When you come to our factory, we will try our best to supply you all services to make you feel
like at home.
FAQ
1.Q:Are you a factory or trading company?
A: We are a factory.
2.Q:Where is your factory located?
A: Our factory is in Shanghai,China.
3.Q:What is the material of your products?
A: We are always high quality material and world famous components.
4.Q:How about quality control in your factory?
A: We are always paying great attentions to quality controlling from the beginning to the end.
5.Q:How about guarantee?
A: It's within 1 year after goods is discharged in the destination.
