Product Details:
Payment & Shipping Terms:
|
Capacity:: | 15kg-120kg | Loading Type: | Front Loading,Back Unloading |
---|---|---|---|
Raw Material: | Stainless Steel 304 | Heating:: | Electric, Steam, Electric&Steam,Hot & Cold Water |
Automatic: | Automatic & Manual | Voltage: | 110v,220v,380v,400v,440v |

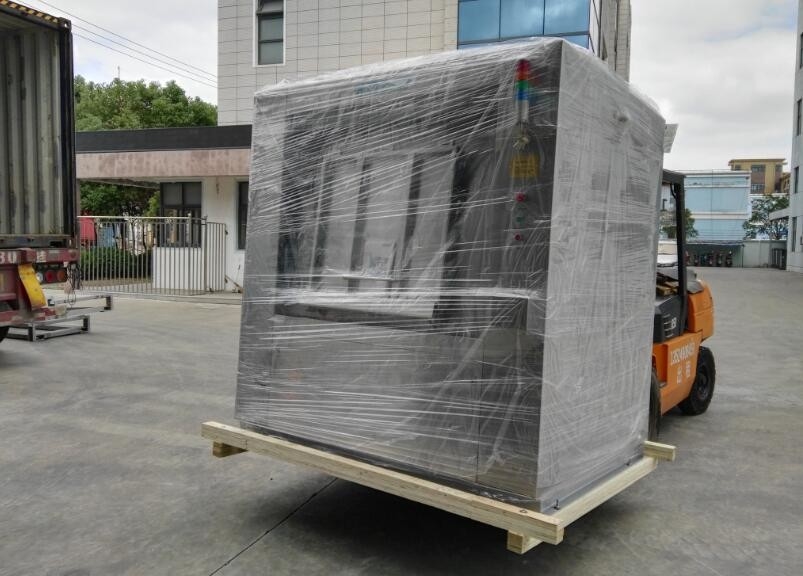

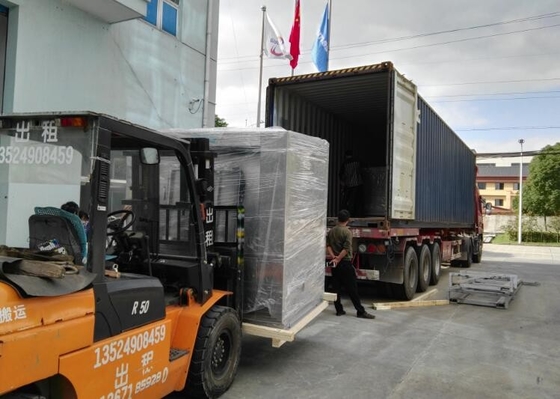

Packing: | Pallet Or Wooden Case | HS Code: | 84502000 |
Suspension: | Airbag Suspension Shock Structure | Door: | Two Doors |
Compartment: | One Drum With Two Compartments | ||
Highlight: | commercial laundry equipment,professional laundry equipment |
Materials and Structure

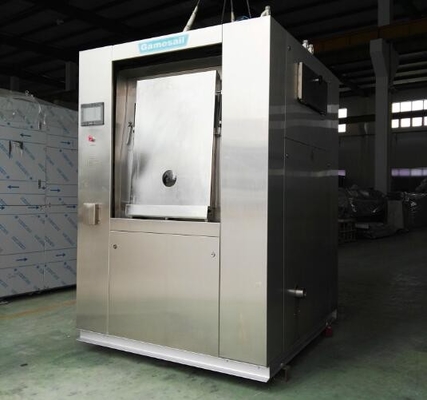

N-series barrier-type washers are able to meet the washing requirement of bacteria-free, dust-free and static-free. Laundry room is divided into two separated operating ranges "clean zone" and "non-clean zone" through isolated-type washer and isolation wall. Linen and dirty clothes will be loaded into the washing machine through the loading door which is openned on the side of the “non-clean zone". After washing is finished, the linen and clothes will be carried out from the "clean zone". And the air cleaning control system will prevent bacteria and dust particles flowing from the "non-clean zone" to "clean zone", thus to avoid secondary pollution and cross-infection of clean linen and clothes.
N-series isolated-type washers are with advanced technology, precise structure and excellent performance.It's convenient to maintain and economic for operation.It's widely used in hospitals, field of food processing, bio-pharmaceutical, nuclear power plants where it's extremely strict on dust-free and bacteria-free.
Main Features
· 350G extract force which reduces energy consumption and increases savings
· Pass Through design separates soiled and clean goods
· Advanced Microcomputer, PC programmable, programs transferred via USDB
· 5 Compartment supply dispenser for dry and liquid chemicals
· 5 connections for automatic chemical injection
· All parts in contact with the wash solution made of stainless steel.
· Inverter drive - programmable variable speed
· Single motor drive
· Standard air bag suspension
· Programmable water levels
· Programmable water temperature
· Down drain connection
PERSONAL CARD
Type/Parameter | N1030 | N1050 | N1070 | N1100 | N1120 |
Rated Capacity (kg) | 30 | 50 | 70 | 100 | 120 |
Power of Motor (kW) | 4 | 5.5 | 7.5 | 11 | 15 |
Diameter of Cold Water Entering Pipe (Inch) | 1'' | 1'' | 1'' | 1'' | 1'' |
Diameter of Hot Water Entering Pipe (Inch) | 1'' | 1'' | 1'' | 1'' | 1'' |
Diameter of Steam Pipe (Inch) | 1/2'' | 3/4'' | 1'' | 1'' | 1'' |
Diameter of Draining Pipe (Inch) | 3'' | 3'' | 4'' | 4'' | 4'' |
Boundary Diameter | |||||
Width(mm) | 1320 | 1440 | 1610 | 1720 | 1980 |
Length(mm) | 1100 | 1500 | 1500 | 1550 | 1710 |
Height(mm) | 1820 | 1950 | 2140 | 2330 | 2330 |
Weight(kg) | 1550 | 2250 | 2850 | 3250 | 3900 |
THE FACTORY
Our Gamesail attaches great importance to the innovation and development of technology, the advantage of which comes as our core competence. We have a superior engineering and technique team, among which are our own technicians with over 20 years’ professional designing experience and world renowned experts in designing washing machines. Our technicians are always organized to go abroad to exchange views and learn from international professionals of the most advanced technology and industrial trend in a bid to be the forerunner in this field.
Gamesail invested a lot in technological research and development. By the year 2014, Gamesail have won 16 national patents and more are under application. In 2012, we are awarded the “Shanghai High-tech Achievement Transformation Project”. In 2013, we won the reputation of “Shanghai Innovation Fund Project” and meanwhile awarded the title of “Shanghai Energy-saving Product”. Additionally, our products are under the product quality management system of ISO9001and European Union CE along with the ISO14001 environment management system.
In 21st century, the development trend of technology is energy-saving. Keeping pace with this trend, we Gamesail have invested a lot in developing products of energy-saving series. In the year 2011, 2013 and 2014, we respectively launched the energy-saving series products of drying machine, washing machine and ironing machine. In the future, we will continue to exert ourselves to innovate and design better products for the contribution to protecting our mother-earth.
Gamesail will always be in the pioneering spirits of high level, large scale, sound quality and high technology to meet customers’ needs with our more advanced, more energy-saving and more professional products.
FAQ
1.Q:Are you a factory or trading company?
A: We are a factory.
2.Q:Where is your factory located?
A: Our factory is in Shanghai,China.
3.Q:What is the material of your products?
A: We are always high quality material and world famous components.
4.Q:How about quality control in your factory?
A: We are always paying great attentions to quality controlling from the beginning to the end.
