30kg Water Saving Laundry Washing Machine Free Standing For Hospital Laundry
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Capacity:: | 15kg,20kg,25kg,30kg,50kg,70kg,100kg,130kg,150kg | Loading Type: | Front Loading |
|---|---|---|---|
| Raw Material: | Stainless Steel 304 | Heating:: | Electric, Steam, Electric&Steam,Hot & Cold Water |
| Control: | Micro Computer Control | Automatic: | Automatic & Manual |
| Voltage: | 110v,220v,380v,400v,440v | Packing: | Pallet Or Wooden Case |
| Installation: | Soft Mounted, Free Standing | ||
| High Light: | industrial washer dryer,commercial laundromat equipment |
||
30kg Soft mounted Laundry Washing Machine with free standing used for hotel, hospital
Main Features
1. Adopt touch-type programmable computer control system, it is highly automatic, safe, stability and anti-shock.
1. Adopt touch-type programmable computer control system, it is highly automatic, safe, stability and anti-shock.
2. Adopt the international latest complete suspension structure to reduce shock, Real meaing of free standing,No damage to machine while high spin.it can ensure an ideal anti-shock effect even on higher floors. Patented anti-vibration structure spring,shock absorption reaches to 95%(Patent no.200820056884.2)
3. With fully-closed and rear-drainage structure,Large drain valves and two drain connections available.It is good for environmental protection.
4. It is with a drum without compartment and single door structure convenivent to loading or unloading, and reduces the labor intensity and improves the clean level.
7. We have got CE,IEC,ISO,SASO certificates.Our machines have been sold to USA, UK, Asia, Africa, Amecian, Canada, India and many other countries.
8. Frequency controlled motor.the washing and extractor speed is adjustable.removable compartments Soap hoppers(above 30kg)
9. USB port microprocessor enables to reprogram freely&easily by PC.
10. We provide good pre-sales and after-sales service.We can make the laundry layout drawing for the clients. and lifelong technology conulting service.Easy access to all parts for maintenance.
11, The machines heating way have electric heating, steam heating and cold & hot water types.
PERSONAL CARD

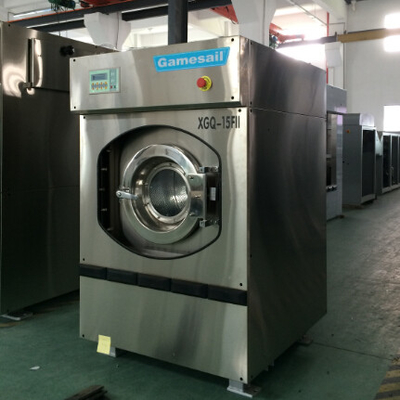

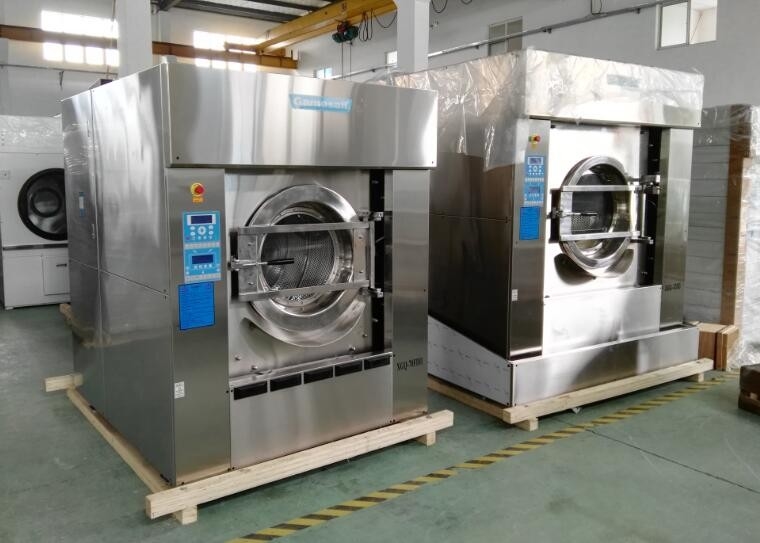

PRODUCT PICTURES
PRODUCT FEATURES
Parameter
| TYPE | XGQ-15FII | XGQ-20FII | XGQ-25FII | XGQ-30FII | XGQ-50FII | XGQ-70FII | XGQ-100FII | XGQ-130FII | |
| CAPACITY | |||||||||
| Drum capacity | kg | 15 | 20 | 25 | 30 | 50 | 70 | 100 | 130 |
| Drum volume | L | 160 | 195 | 250 | 315 | 540 | 708 | 1010 | 1300 |
| Number of drums | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Number ofloading doors | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Number of unloading doors | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| DRUM SPEED | |||||||||
| Washing speed | rpm | 50 | 48 | 45 | 37 | 36 | 35 | 34 | 32 |
| Highest spin speed | rpm | 800 | 780 | 750 | 750 | 720 | 700 | 680 | 635 |
| G-force | rpm | 230 | 240 | 250 | 285 | 300 | 300 | 300 | 300 |
| HEATING | |||||||||
| Electric | kw | 14 | 18 | 21 | 21 | 42 | 46 | / | / |
| Steam ratio | kg/kg | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
| CONNECTIONS | |||||||||
| Water inlet | ZG1.0" | ZG1.0" | ZG1.2" | ZG1.5" | ZG1.5" | ZG1.5" | ZG1.5" | ZG2.0" | |
| Steam inlet | ZG3/4" | ZG3/4" | ZG3/4" | ZG1.0" | ZG1.0" | ZG1.0" | ZG1.0" | ZG1.5" | |
| DIMENTIONS | |||||||||
| Width | mm | 930 | 1000 | 1150 | 1460 | 1610 | 1650 | 1760 | 1950 |
| Depth | mm | 1100 | 1170 | 1220 | 1440 | 1680 | 1960 | 2090 | 2220 |
| Height | mm | 1530 | 1560 | 1600 | 1840 | 2040 | 2160 | 1970 | 2175 |
THE FACTORY
Located in the Shanghai, a beautiful city in China, Shanghai Gamesail washing machine CO., LTD owns many factory buildings, covering an area of 12000 square meters.
Founded in early 2002, with years’ efforts, we have developed a variety of machine series including water washing, drying, ironing, dry cleaning and other related auxiliary equipment, making the total variety exceeding 70. We are capable of providing diversified solutions to our customers to meet their different needs.
Gamesail invested a lot in technological research and development. By the year 2014, Gamesail have won 16 national patents and more are under application. In 2012, we are awarded the “Shanghai High-tech Achievement Transformation Project”. In 2013, we won the reputation of “Shanghai Innovation Fund Project” and meanwhile awarded the title of “Shanghai Energy-saving Product”. Additionally, our products are under the product quality management system of ISO9001and European Union CE along with the ISO14001 environment management system.
In 21st century, the development trend of technology is energy-saving. Keeping pace with this trend, we Gamesail have invested a lot in developing products of energy-saving series. In the year 2011, 2013 and 2014, we respectively launched the energy-saving series products of drying machine, washing machine and ironing machine. In the future, we will continue to exert ourselves to innovate and design better products for the contribution to protecting our mother-earth.
Gamesail will always be in the pioneering spirits of high level, large scale, sound quality and high technology to meet customers’ needs with our more advanced, more energy-saving and more professional products.
