Product Details:
Payment & Shipping Terms:
|
Capacity:: | 15kg,20kg,25kg,30kg,50kg,70kg,100kg,130kg,150kg | Loading Type: | Front Loading |
---|---|---|---|
Raw Material: | Stainless Steel 304 | Heating:: | Electric,Steam,Electric&Steam,Hot & Cold Water |
Suspension: | Spring & Airbag Suspension System | Control: | Micro Computer Control |
Automatic: | Automatic & Manual | Voltage: | 110v,220v,380v,400v,440v |
HS Code: | 84502000 | Packing: | Pallet Or Wooden Case |
Highlight: | industrial washer dryer,commercial laundromat equipment |

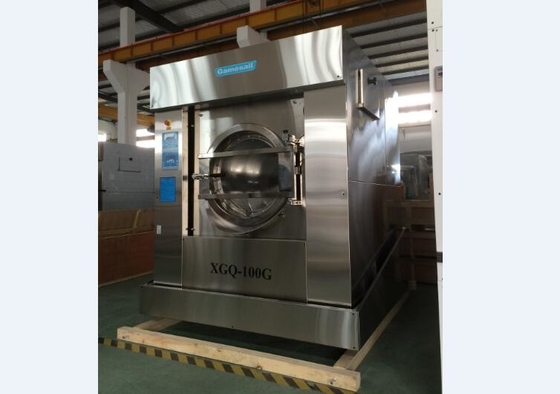

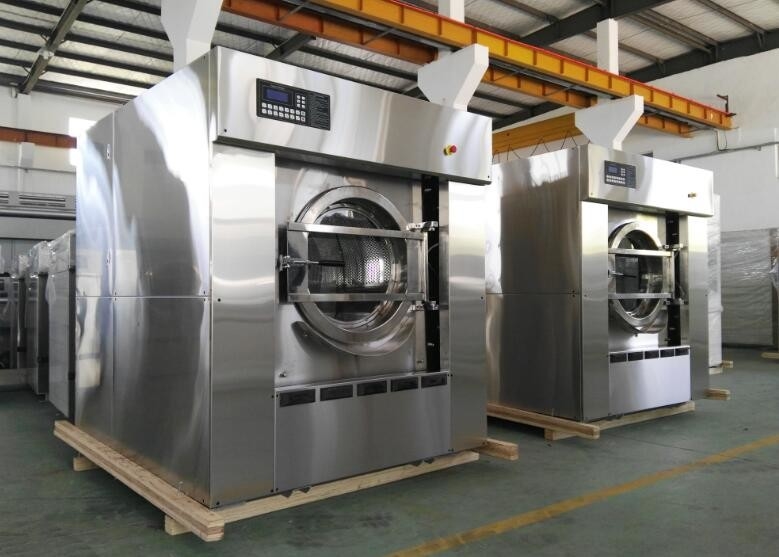

Fully automatic laundry washing machine with computer controller
Main Features
1. Adopt touch-type programmable computer control system, it is highly automatic, safe, stability and anti-shock.
2. Adopt the international latest complete suspension structure to reduce shock, Real meaing of free standing,No damage to machine while high spin.it can ensure an ideal anti-shock effect even on higher floors. Patented anti-vibration structure spring,shock absorption reaches to 95%(Patent no.200820056884.2)
3. It is with a drum without compartment and single door structure convenivent to loading or unloading, and reduces the labor intensity and improves the clean level.
4. With fully-closed and rear-drainage structure,Large drain valves and two drain connections available.It is good for environmental protection.
5. The drum and case are both made of high quality stainless steel with the advantages of stain resistance and durability.Each drum tested by dynamic balance machine and the gravity deviation no more than 20g.
6. We adopt world famous qualified parts suppliers.like Japan Yaskawa inverter,MIT V-belts,American TWB bearings,French Schneider electric parts,Imported Viton seal makes no leakage,and so on to ensure the high quality.
7. We have got CE,IEC,ISO,SASO certificates.Our machines have been sold to USA, UK, Asia, Africa, Amecian, Canada, India and many other countries.
8. Frequency controlled motor.the washing and extractor speed is adjustable.removable compartments Soap hoppers(above 30kg)
9. USB port microprocessor enables to reprogram freely&easily by PC.
10. We provide good pre-sales and after-sales service.We can make the laundry layout drawing for the clients. and lifelong technology conulting service.Easy access to all parts for maintenance.
11, The machines heating way have electric heating, steam heating and cold & hot water types.
Parameter
TYPE | XGQ-15FII | XGQ-20FII | XGQ-25FII | XGQ-30FII | XGQ-50FII | XGQ-70FII | XGQ-100FII | XGQ-130FII | |
CAPACITY | |||||||||
Drum capacity | kg | 15 | 20 | 25 | 30 | 50 | 70 | 100 | 130 |
Drum volume | L | 160 | 195 | 250 | 315 | 540 | 708 | 1010 | 1300 |
Number of drums | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Number ofloading doors | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Number of unloading doors | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
DRUM SPEED | |||||||||
Washing speed | rpm | 50 | 48 | 45 | 37 | 36 | 35 | 34 | 32 |
Highest spin speed | rpm | 800 | 780 | 750 | 750 | 720 | 700 | 680 | 635 |
G-force | rpm | 230 | 240 | 250 | 285 | 300 | 300 | 300 | 300 |
HEATING | |||||||||
Electric | kw | 14 | 18 | 21 | 21 | 42 | 46 | / | / |
Steam ratio | kg/kg | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
CONNECTIONS | |||||||||
Water inlet | ZG1.0" | ZG1.0" | ZG1.2" | ZG1.5" | ZG1.5" | ZG1.5" | ZG1.5" | ZG2.0" | |
Steam inlet | ZG3/4" | ZG3/4" | ZG3/4" | ZG1.0" | ZG1.0" | ZG1.0" | ZG1.0" | ZG1.5" | |
DIMENTIONS | |||||||||
Width | mm | 930 | 1000 | 1150 | 1460 | 1610 | 1650 | 1760 | 1950 |
Depth | mm | 1100 | 1170 | 1220 | 1440 | 1680 | 1960 | 2090 | 2220 |
Height | mm | 1530 | 1560 | 1600 | 1840 | 2040 | 2160 | 1970 | 2175 |
