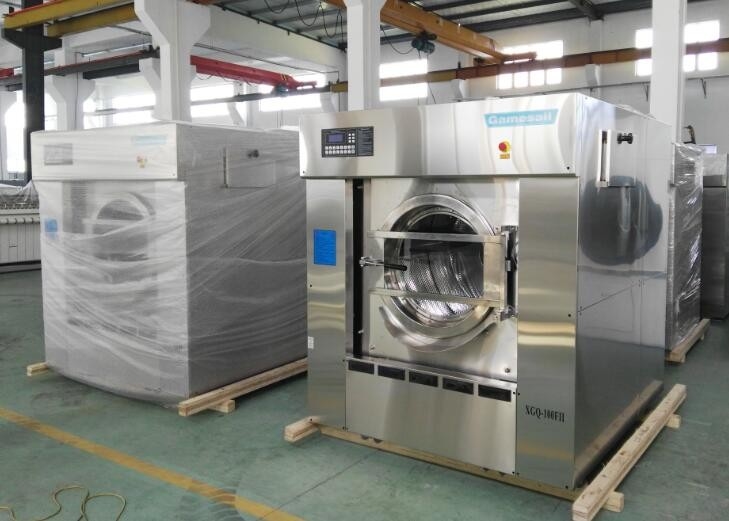

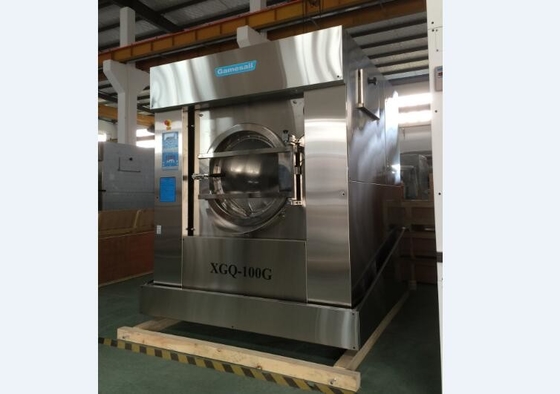

Fully Automatic 50kg Speed Queen Commercial Washer , Big Capacity Industrial Washer And Dryer
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Capacity:: | 15kg,20kg,25kg,30kg,50kg,70kg,100kg,130kg,150kg | Loading Type: | Front Loading |
|---|---|---|---|
| Raw Material: | Stainless Steel 304 | Heating:: | Electric, Steam, Electric&Steam,Hot & Cold Water |
| Control: | Micro Computer Control | Automatic: | Automatic & Manual |
| Voltage: | 110v,220v,380v,400v,440v | Packing: | Pallet Or Wooden Case |
| HS Code: | 84502000 | Door No.: | One Door |
| Installation: | Free Standing | ||
| High Light: | commercial laundry machines,industrial washer dryer |
||
Automatic 50kg Laundry Washing Machine, made by SS304, 30 kinds of washing programs
Main Features
1. Adopt touch-type programmable computer control system, it is highly automatic, safe, stability and anti-shock.
1. Adopt touch-type programmable computer control system, it is highly automatic, safe, stability and anti-shock.
2. Adopt the international latest complete suspension structure to reduce shock, Real meaing of free standing,No damage to machine while high spin.it can ensure an ideal anti-shock effect even on higher floors. Patented anti-vibration structure spring,shock absorption reaches to 95%(Patent no.200820056884.2)
3. With fully-closed and rear-drainage structure,Large drain valves and two drain connections available.It is good for environmental protection.
5. The drum and case are both made of high quality stainless steel with the advantages of stain resistance and durability.Each drum tested by dynamic balance machine and the gravity deviation no more than 20g.
6. We adopt world famous qualified parts suppliers.like Japan Yaskawa inverter,MIT V-belts,American TWB bearings,French Schneider electric parts,Imported Viton seal makes no leakage,and so on to ensure the high quality.
7. We have got CE,IEC,ISO,SASO certificates.Our machines have been sold to USA, UK, Asia, Africa, Amecian, Canada, India and many other countries.
9. USB port microprocessor enables to reprogram freely&easily by PC.
10. We provide good pre-sales and after-sales service.We can make the laundry layout drawing for the clients. and lifelong technology conulting service.Easy access to all parts for maintenance.
11, The machines heating way have electric heating, steam heating and cold & hot water types.
PRODUCT PARAMETER
| TYPE | XGQ-15FII | XGQ-20FII | XGQ-25FII | XGQ-30FII | XGQ-50FII | XGQ-70FII | XGQ-100FII | XGQ-130FII | |
| CAPACITY | |||||||||
| Drum capacity | kg | 15 | 20 | 25 | 30 | 50 | 70 | 100 | 130 |
| Drum volume | L | 160 | 195 | 250 | 315 | 540 | 708 | 1010 | 1300 |
| Number of drums | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Number ofloading doors | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Number of unloading doors | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| DRUM SPEED | |||||||||
| Washing speed | rpm | 50 | 48 | 45 | 37 | 36 | 35 | 34 | 32 |
| Highest spin speed | rpm | 800 | 780 | 750 | 750 | 720 | 700 | 680 | 635 |
| G-force | rpm | 230 | 240 | 250 | 285 | 300 | 300 | 300 | 300 |
| HEATING | |||||||||
| Electric heating power | kw | 14 | 18 | 21 | 21 | 42 | 46 | / | / |
| Steam ratio | kg/kg | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
| CONNECTIONS | |||||||||
| Water inlet | ZG1.0" | ZG1.0" | ZG1.2" | ZG1.5" | ZG1.5" | ZG1.5" | ZG1.5" | ZG2.0" | |
| Steam inlet | ZG3/4" | ZG3/4" | ZG3/4" | ZG1.0" | ZG1.0" | ZG1.0" | ZG1.0" | ZG1.5" | |
| DIMENSIONS | |||||||||
| Width | mm | 930 | 1000 | 1150 | 1460 | 1610 | 1650 | 1760 | 1950 |
| Depth | mm | 1100 | 1170 | 1220 | 1440 | 1680 | 1960 | 2090 | 2220 |
| Height | mm | 1530 | 1560 | 1600 | 1840 | 2040 | 2160 | 1970 | 2175 |
