Product Details:
Payment & Shipping Terms:
|
Capacity:: | 15kg,20kg,25kg,30kg,50kg,70kg,100kg,130kg,150kg | Loading Type: | Front Loading |
---|---|---|---|
Raw Material: | Stainless Steel 304 | Heating:: | Electric, Steam, Electric&Steam,Hot & Cold Water |
Control: | Micro Computer Control | Automatic: | Automatic & Manual |
Voltage: | 110v,220v,380v,400v,440v | Packing: | Pallet Or Wooden Case |
HS Code: | 84502000 | Installation: | Free Standing |
Highlight: | commercial laundry machines,commercial laundromat equipment |

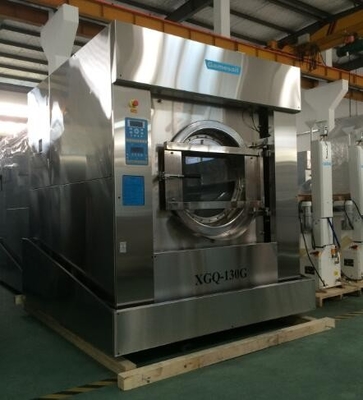

Automatic 100kg 130kg Laundry Washing Machine, laundry machine made by SS304 used for laundry
Main FeaturesMain Features
· Standard 1 year warranty
· 350G extract force which reduces energy consumption and increases savings
· Advanced Microcomputer, PC programmable, programs transferred via USB
· 5 Compartment supply dispenser for dry and liquid chemicals
· 5 connections for automatic chemical injection
· All parts in contact with the wash solution made of stainless steel.
· Inverter drive - programmable variable speed
· Single motor drive
· Robust spring or Airbag suspension
· Programmable water levels
· Programmable water temperature
· Rear drain connection
PERSONAL CARD
Parameter
TYPE | XGQ-15FII | XGQ-20FII | XGQ-25FII | XGQ-30FII | XGQ-50FII | XGQ-70FII | XGQ-100FII | XGQ-130FII | |
CAPACITY | |||||||||
Drum capacity | kg | 15 | 20 | 25 | 30 | 50 | 70 | 100 | 130 |
Drum volume | L | 160 | 195 | 250 | 315 | 540 | 708 | 1010 | 1300 |
Number of drums | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Number ofloading doors | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Number of unloading doors | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
DRUM SPEED | |||||||||
Washing speed | rpm | 50 | 48 | 45 | 37 | 36 | 35 | 34 | 32 |
Highest spin speed | rpm | 800 | 780 | 750 | 750 | 720 | 700 | 680 | 635 |
G-force | rpm | 230 | 240 | 250 | 285 | 300 | 300 | 300 | 300 |
HEATING | |||||||||
Electric | kw | 14 | 18 | 21 | 21 | 42 | 46 | / | / |
Steam ratio | kg/kg | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
CONNECTIONS | |||||||||
Water inlet | ZG1.0" | ZG1.0" | ZG1.2" | ZG1.5" | ZG1.5" | ZG1.5" | ZG1.5" | ZG2.0" | |
Steam inlet | ZG3/4" | ZG3/4" | ZG3/4" | ZG1.0" | ZG1.0" | ZG1.0" | ZG1.0" | ZG1.5" | |
DIMENTIONS | |||||||||
Width | mm | 930 | 1000 | 1150 | 1460 | 1610 | 1650 | 1760 | 1950 |
Depth | mm | 1100 | 1170 | 1220 | 1440 | 1680 | 1960 | 2090 | 2220 |
Height | mm | 1530 | 1560 | 1600 | 1840 | 2040 | 2160 | 1970 | 2175 |
THE FACTORY
Shanghai Gamesail is the industry leader in industrial and commercial laundry equipment with a full line of industrial washers, dryers, ironers, feeders, and folders. Backed by the most trusted names in the industry Gamesail offers a complete line of industrial laundry equipment to fit any laundry demands. From our reliable line of industrial washing machines to our durable line of dryers and finishing equipment we have everything you need.
The most comprehensive line available from one single source
Our Gamesail attaches great importance to the innovation and development of technology, the advantage of which comes as our core competence. We have a superior engineering and technique team, among which are our own technicians with over 20 years’ professional designing experience and world renowned experts in designing washing machines. Our technicians are always organized to go abroad to exchange views and learn from international professionals of the most advanced technology and industrial trend in a bid to be the forerunner in this field.
Gamesail invested a lot in technological research and development. By the year 2014, Gamesail have won 16 national patents and more are under application. In 2012, we are awarded the “Shanghai High-tech Achievement Transformation Project”. In 2013, we won the reputation of “Shanghai Innovation Fund Project” and meanwhile awarded the title of “Shanghai Energy-saving Product”. Additionally, our products are under the product quality management system of ISO9001and European Union CE along with the ISO14001 environment management system.
In 21st century, the development trend of technology is energy-saving. Keeping pace with this trend, we Gamesail have invested a lot in developing products of energy-saving series. In the year 2011, 2013 and 2014, we respectively launched the energy-saving series products of drying machine, washing machine and ironing machine. In the future, we will continue to exert ourselves to innovate and design better products for the contribution to protecting our mother-earth.
