Product Details:
Payment & Shipping Terms:
|
Capacity:: | 15kg-150kg | Loading Type: | Front Loading |
---|---|---|---|
Raw Material: | Stainless Steel 304 | Heating:: | Electric, Steam, Electric&Steam,Hot & Cold Water |
Automatic: | Automatic & Manual | Voltage: | 110v,220v,380v,400v,440v |
Packing: | Pallet Or Wooden Case | HS Code: | 84502000 |
Suspension: | Full Suspension Shock Structure | Door: | Front And Single |
Highlight: | industrial washer and dryer,commercial grade washing machine |
· 15, 20, 25, 30, 50, 70, 100 and 130 kilogram capacities
· 350G extraction equals less time in the dryer
· Powerful and easy to use control with unequalled flexibility
· 5 compartment supply dispenser for liquid and dry chemicals
· 5 connections for automatic chemical injection
· Large door opening for easier loading and unloading
· Strong door and hinge system made of 304 stainless steel
· Dry zone bearings are not damaged should seals leak
TYPE | XGQ-15FII | XGQ-20FII | XGQ-25FII | XGQ-30FII | XGQ-50FII | XGQ-70FII | XGQ-100FII | XGQ-130FII | |
CAPACITY | |||||||||
Drum capacity | kg | 15 | 20 | 25 | 30 | 50 | 70 | 100 | 130 |
Drum volume | L | 160 | 195 | 250 | 315 | 540 | 708 | 1010 | 1300 |
Number of drums | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Number ofloading doors | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Number of unloading doors | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
DRUM SPEED | |||||||||
Washing speed | rpm | 50 | 48 | 45 | 37 | 36 | 35 | 34 | 32 |
Highest spin speed | rpm | 800 | 780 | 750 | 750 | 720 | 700 | 680 | 635 |
G-force | rpm | 230 | 240 | 250 | 285 | 300 | 300 | 300 | 300 |
HEATING | |||||||||
Electric | kw | 14 | 18 | 21 | 21 | 42 | 46 | / | / |
Steam ratio | kg/kg | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
CONNECTIONS | |||||||||
Water inlet | ZG1.0" | ZG1.0" | ZG1.2" | ZG1.5" | ZG1.5" | ZG1.5" | ZG1.5" | ZG2.0" | |
Steam inlet | ZG3/4" | ZG3/4" | ZG3/4" | ZG1.0" | ZG1.0" | ZG1.0" | ZG1.0" | ZG1.5" | |
DIMENTIONS | |||||||||
Width | mm | 930 | 1000 | 1150 | 1460 | 1610 | 1650 | 1760 | 1950 |
Depth | mm | 1100 | 1170 | 1220 | 1440 | 1680 | 1960 | 2090 | 2220 |
Height | mm | 1530 | 1560 | 1600 | 1840 | 2040 | 2160 | 1970 | 2175 |
industrial and commercial washer-extractors are designed to be effortless and powerful while maintaining a low cost of ownership. Our entire line saves you money over the life of the machine. In addition to a low initial investment, our commercial machines have fewer parts. Fewer parts mean fewer things to break, which leads to less down time for the equipment and fewer repairs.
Higher extraction equals less time in the dryer which reduces energy consumption and increases savings. The savings start with commercial washing machines that are designed to be easily installed. Your laundry can be up and running in hours instead of days.
Our commercial washers are engineered with the finest components to ensure a longer lasting machine. Our inverter driven single motor design offers flexible operation, precise speed control and verified motor protection. Every component that comes into contact with the wash solution is Stainless Steel. The entire Gamesail line features our proven frame design, the strongest in the industry. The backbone of any machine is the frame and ours is designed and tested to stand the true rigorous demands of continuous operation in your laundry.

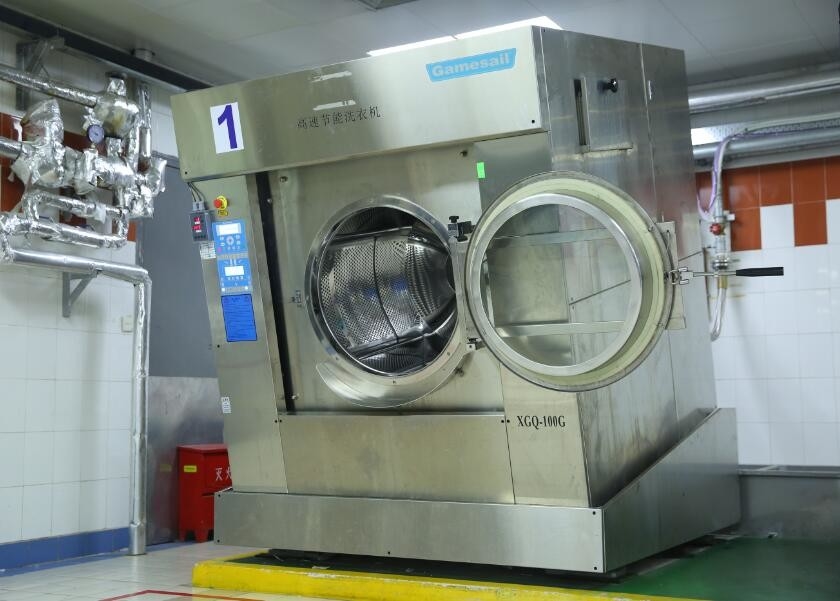

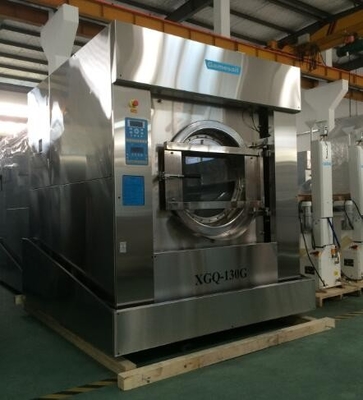

Washer extractor
Softmount High Speed Industrial Washer-Extractors for Medium to Large Sized On Premise Laundry, Commercial and Industrial Laundry Applications, Including Resort Hospitality, Health Care, and Correctional Facilities
The most comprehensive line available from one single source
1. Highest quality components lead to less equipment downtime and repair
2. All lines are made for long life
3. Easy to use controls
4. Reduces energy and labor costs
5. Dedicated to customer service

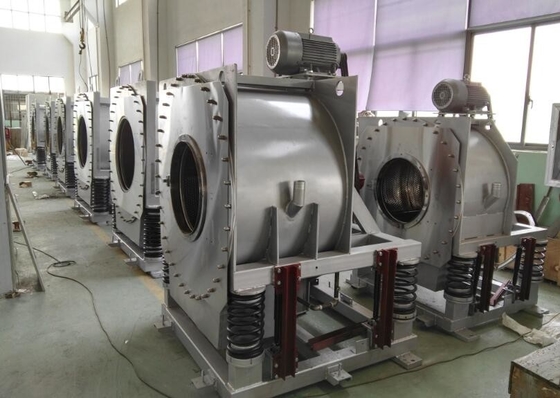

THE FACTORY
Located in the Shanghai, a beautiful city in China, Shanghai Gamesail washing machine CO., LTD owns many factory buildings, covering an area of 12000 square meters.
Founded in early 2002, with years’ efforts, we have developed a variety of machine series including water washing, drying, ironing, dry cleaning and other related auxiliary equipment, making the total variety exceeding 70. We are capable of providing diversified solutions to our customers to meet their different needs.
Why Choose Gamesail
1. Supply you top quality products with competitive price under the same quality level,
different products according to your different market demands.
2. Strictly control the whole production process and guarantee punctual delivery, Test each
of our products one by one before packing to ensure the quality.
3. Supply you a good pre-sale, in-sale and after-sale service, We're not just working partners,
but also friends and family.
4. When you come to our factory, we will try our best to supply you all services to make you feel
like at home.
