Product Details:
Payment & Shipping Terms:
|
Capacity:: | 15kg-150kg | Loading Type: | Front Loading |
---|---|---|---|
Heating:: | Electric, Steam, Electric&Steam,Hot & Cold Water | Voltage: | 110v,220v,380v,400v,440v |
Packing: | Pallet Or Wooden Case | HS Code: | 84502000 |
Suspension: | Full Suspension Shock Structure | Door: | Front And Single |
Highlight: | industrial washer and dryer,commercial grade washing machine |

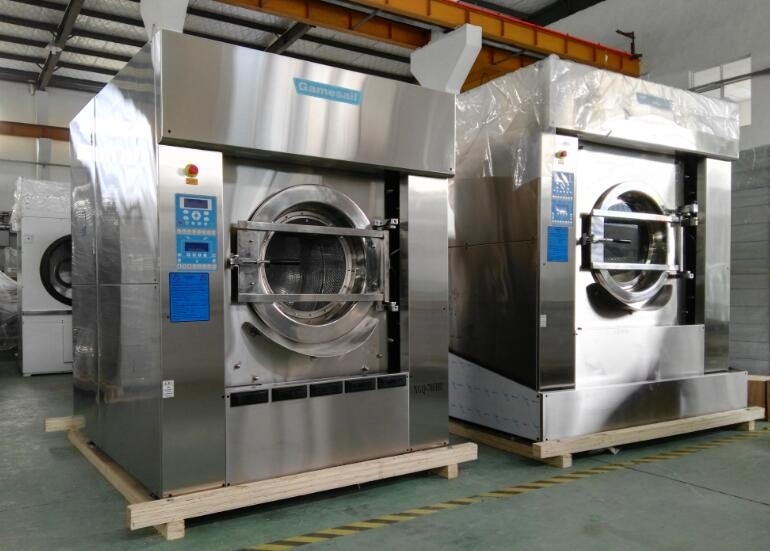

Full auto 15-150kg stainless steel commercial heavy duty industrial washing machine
Washer extractor
Softmount High Speed Industrial Washer-Extractors for Medium to Large Sized On Premise Laundry, Commercial and Industrial Laundry Applications, Including Resort Hospitality, Health Care, and Correctional Facilities
· 15, 20, 25, 30, 50, 70, 100 and 130 kilogram capacities
· 350G extraction equals less time in the dryer
· Powerful and easy to use control with unequalled flexibility
· 5 compartment supply dispenser for liquid and dry chemicals
· 5 connections for automatic chemical injection
· Large door opening for easier loading and unloading
· Strong door and hinge system made of 304 stainless steel
· Dry zone bearings are not damaged should seals leak
Save Steam
· A traditional laundry machine relies on steam to act as the primary cleaning medium. Because of this, even the so-called “high-efficiency” models still consume bathfuls of steam with every wash cycle. A XGQ-G machine have 350G extract force which reduces energy consumption and 350G extraction equals less time in the dryer. Less drying time can save 20% steam consumption for dryer. With our steam-saving type GZZ-G dryer machine,it can save 40% steam consumption and reduce 50% drying time.The steam is recycled. Save 20% steam for washer,40% steam for dryer.
Sustainability
The efficiency of the XGQ-G machine makes it the ideal tool for ecologically-minded companies is an environment-friendly solution for your fabric washing needs. Plus, the GZZ-G dryer are steam re-usable and fully recyclable, allowing them to save the cost for clients.
Garment Life
Traditional washing machines rely on high temperatures and large amounts of harsh chemicals to get fabrics clean. XGQ achieves a cleaner result with lower temperatures and less detergent, which means less wear and tear on your expensive sheets, towels, and the clothes you value.
PERSONAL CARD
Parameter
TYPE | XGQ-15FII | XGQ-20FII | XGQ-25FII | XGQ-30FII | XGQ-50FII | XGQ-70FII | XGQ-100FII | XGQ-130FII | |
CAPACITY | |||||||||
Drum capacity | kg | 15 | 20 | 25 | 30 | 50 | 70 | 100 | 130 |
Drum volume | L | 160 | 195 | 250 | 315 | 540 | 708 | 1010 | 1300 |
Number of drums | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Number ofloading doors | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Number of unloading doors | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
DRUM SPEED | |||||||||
Washing speed | rpm | 50 | 48 | 45 | 37 | 36 | 35 | 34 | 32 |
Highest spin speed | rpm | 800 | 780 | 750 | 750 | 720 | 700 | 680 | 635 |
G-force | rpm | 230 | 240 | 250 | 285 | 300 | 300 | 300 | 300 |
HEATING | |||||||||
Electric | kw | 14 | 18 | 21 | 21 | 42 | 46 | / | / |
Steam ratio | kg/kg | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
CONNECTIONS | |||||||||
Water inlet | ZG1.0" | ZG1.0" | ZG1.2" | ZG1.5" | ZG1.5" | ZG1.5" | ZG1.5" | ZG2.0" | |
Steam inlet | ZG3/4" | ZG3/4" | ZG3/4" | ZG1.0" | ZG1.0" | ZG1.0" | ZG1.0" | ZG1.5" | |
DIMENTIONS | |||||||||
Width | mm | 930 | 1000 | 1150 | 1460 | 1610 | 1650 | 1760 | 1950 |
Depth | mm | 1100 | 1170 | 1220 | 1440 | 1680 | 1960 | 2090 | 2220 |
Height | mm | 1530 | 1560 | 1600 | 1840 | 2040 | 2160 | 1970 | 2175 |
THE FACTORY
Located in the Shanghai, a beautiful city in China, Shanghai Gamesail washing machine CO., LTD owns many factory buildings, covering an area of 12000 square meters.
Founded in early 2002, with years’ efforts, we have developed a variety of machine series including water washing, drying, ironing, dry cleaning and other related auxiliary equipment, making the total variety exceeding 70. We are capable of providing diversified solutions to our customers to meet their different needs.
Gamesail has a researching and developing team with rich professional technology, among which are our technicians of over 20 years’ professional designing experience and internationally famous designing experts. Through learning from advanced international technology, we never stop the pace of innovation and have succeeded in designing the G series production with our own characteristics. This type of machine enjoys the superiority of advanced designs, low energy consumption, shorter washing period and will lead an industrial innovative trend.
Holding the tenet of sustainable development and win-win result with our cooperators, we always set our goal as: to be the first in cost-performance. Our products rank high in quality and service life, for which we are chosen by countless customers. However, our price is customer friendly, which ends in our superior cost-performance. That best answers why we enjoy great popularity in our customers.
FAQ
1.Q:Are you a factory or trading company?
A: We are a factory.
2.Q:Where is your factory located?
A: Our factory is in Shanghai,China.
3.Q:What is the material of your products?
A: We are always high quality material and world famous components.
4.Q:How about quality control in your factory?
A: We are always paying great attentions to quality controlling from the beginning to the end.
5.Q:How about guarantee?
A: It's within 1 year after goods is discharged in the destination.
