Big 130kg Heavy Duty Washing Machine , Europe Standard Commercial Laundry Equipment
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Capacity:: | 15kg,20kg,25kg,30kg,50kg,70kg,100kg,130kg,150kg | Loading Type: | Front Loading |
|---|---|---|---|
| Raw Material: | Stainless Steel 304 | Heating:: | Electric, Steam, Electric&Steam,Hot & Cold Water |
| Control: | Micro Computer Control | Automatic: | Automatic & Manual |
| Voltage: | 110v,220v,380v,400v,440v | Packing: | Pallet Or Wooden Case |
| HS Code: | 84502000 | ||
| Highlight: | commercial laundry machines,industrial washer dryer |
||

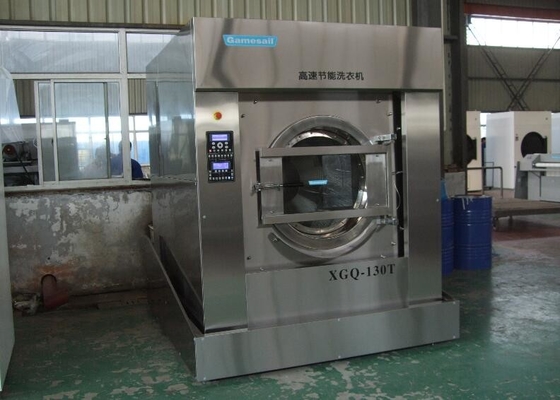

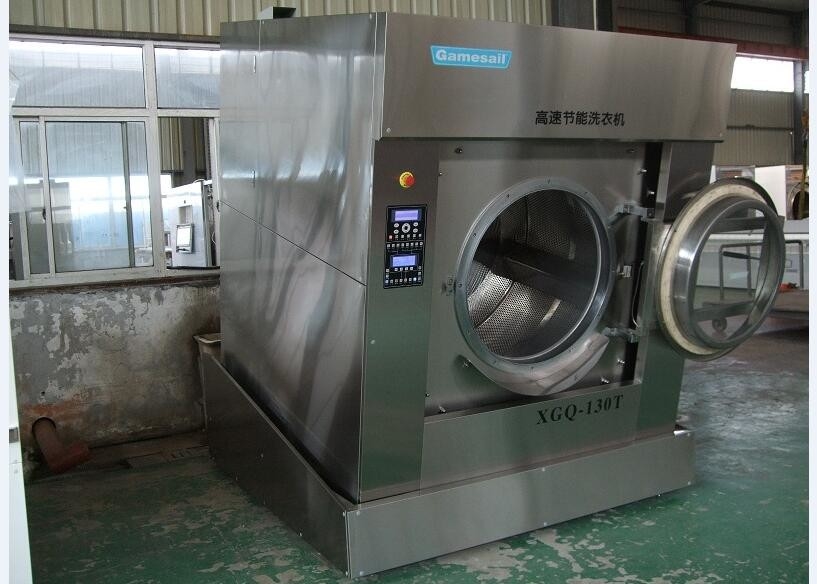

Big 130kg Laundry Washing Machine with Europe standard and quality
Main Features
1. Adopt touch-type programmable computer control system, it is highly automatic, safe, stability and anti-shock.
1. Adopt touch-type programmable computer control system, it is highly automatic, safe, stability and anti-shock.
2. Adopt the international latest complete suspension structure to reduce shock, Real meaing of free standing,No damage to machine while high spin.it can ensure an ideal anti-shock effect even on higher floors. Patented anti-vibration structure spring,shock absorption reaches to 95%(Patent no.200820056884.2)
3. With fully-closed and rear-drainage structure,Large drain valves and two drain connections available.It is good for environmental protection.
4. It is with a drum without compartment and single door structure convenivent to loading or unloading, and reduces the labor intensity and improves the clean level.
7. We have got CE,IEC,ISO,SASO certificates.Our machines have been sold to USA, UK, Asia, Africa, Amecian, Canada, India and many other countries.
8. Frequency controlled motor.the washing and extractor speed is adjustable.removable compartments Soap hoppers(above 30kg)
9. USB port microprocessor enables to reprogram freely&easily by PC.
10. We provide good pre-sales and after-sales service.We can make the laundry layout drawing for the clients. and lifelong technology conulting service.Easy access to all parts for maintenance.
11, The machines heating way have electric heating, steam heating and cold & hot water types.
PRODUCT PARAMETER
| TYPE | XGQ-15FII | XGQ-20FII | XGQ-25FII | XGQ-30FII | XGQ-50FII | XGQ-70FII | XGQ-100FII | XGQ-130FII | |
| CAPACITY | |||||||||
| Drum capacity | kg | 15 | 20 | 25 | 30 | 50 | 70 | 100 | 130 |
| Drum volume | L | 160 | 195 | 250 | 315 | 540 | 708 | 1010 | 1300 |
| Number of drums | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Number ofloading doors | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Number of unloading doors | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| DRUM SPEED | |||||||||
| Washing speed | rpm | 50 | 48 | 45 | 37 | 36 | 35 | 34 | 32 |
| Highest spin speed | rpm | 800 | 780 | 750 | 750 | 720 | 700 | 680 | 635 |
| G-force | rpm | 230 | 240 | 250 | 285 | 300 | 300 | 300 | 300 |
| HEATING | |||||||||
| Electric heating power | kw | 14 | 18 | 21 | 21 | 42 | 46 | / | / |
| Steam ratio | kg/kg | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
| CONNECTIONS | |||||||||
| Water inlet | ZG1.0" | ZG1.0" | ZG1.2" | ZG1.5" | ZG1.5" | ZG1.5" | ZG1.5" | ZG2.0" | |
| Steam inlet | ZG3/4" | ZG3/4" | ZG3/4" | ZG1.0" | ZG1.0" | ZG1.0" | ZG1.0" | ZG1.5" | |
| DIMENSIONS | |||||||||
| Width | mm | 930 | 1000 | 1150 | 1460 | 1610 | 1650 | 1760 | 1950 |
| Depth | mm | 1100 | 1170 | 1220 | 1440 | 1680 | 1960 | 2090 | 2220 |
| Height | mm | 1530 | 1560 | 1600 | 1840 | 2040 | 2160 | 1970 | 2175 |
PERSONAL CARD
GAMESAIL FACTORY
Gamesail founded in early 2002, with years’ efforts, we have developed a variety of machine series including water washing, drying, ironing, dry cleaning and other related auxiliary equipment, making the total variety exceeding 70. We are capable of providing diversified solutions to our customers to meet their different needs.
Our machines have European quality and best price.We have got the CE,ISO,IEC certificates and been sold all over the world,We have rich experience and energy-saving design.Gamesail adopt Schneider electrical appliances, Japanese Yaskawa Inverter, Imported German airbag. Tiltable System---easy unloading clothes. High Spin Speed. Perfect pneumatic solenoid valve security system. Thermal energy circulation system, 40% energy-saving.Our satisfied customers from Euro, USA, SOUTH AMERICA, ASIA and AFERICA.Energy-saving and Full automatic Laundry System, guaranteed quality.
"Win-win" cooperation model are our core value.WITH US YOUR MONEY IN SAFE YOUR BUSINESS IN SAFE.
