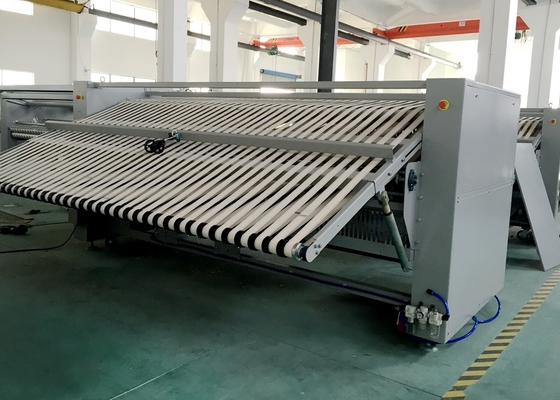

Stainless Automatic V Type Laundry Folding Machine Quilt Folding Machine

Stainless Automatic V Type Laundry Folding Machine Quilt Folding Machine

large.img.alt
small.img.alt

Large Image :  Stainless Automatic V Type Laundry Folding Machine Quilt Folding Machine Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: Gamesail
Certification: CE,ISO9001,ISO14001,SGS
Model Number: XGQ-FII
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: Negotiation
Packaging Details: Wooden packing
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 units per month
Detailed Product Description
Products: Bedsheet Folding Machine Capacity: 3000mm,3300mm
Heating: Electric Raw Material: Stainless Steel 304
Power Supply: 110v,220v,380v,400v,415v,440v HS Code: 84512900
High Light:

bed sheet folding machine

,

automatic clothes folding machine

Stainless And Automatic V Type Laundry Folding Machine Quilt Folding Machine

Main Parts and Features

1.Integrated with speed controlling and exact positioning system, the cloth conveying system can accurately measure the length of the cloth.

2.Two sets of separated driving motor are controlled by frequency converter and can be continuously viable within the folding speed in 50m/min. The set can match various flatwork ironer.

3.Highly intelligentized liquid crystal displaying and touching operating system can dynamically display the operating situation and can programme according to your folding requirements.

4.With intelligentized judgment of folding standard system, it is equipped with the function of protection and alarming to ensure the high quality of folding effects.

5.Adopting specialized ultrahard and smoothening crafts, the ironing slot can ensure ideal ironing results

6.The problem of linen rolling and wrinkling can be effectively avoided with the function of eliminating static electricity thus effectively improving the folding quality and the credibility and stability of the machine.

7.The folding machine of Gamesail is specially designed according to our customers’ demands. With the folding range of3300x3300mm, the equipment can be twice-folded transversally and third-folded vertically with altogether fifth-folding capacity. It is quite suitable for large, middle-sized and small hotels, hospitals, troops and laundry shops. It is the ideal folding machine of flatwork ironed linen.



PRODUCT FEATURES

Parameter

<
Type/Parameter Unit ZD3000-V ZD3300-V
Maximum Folding Length×Width mm 3300×3300 3300×3300
Folding Capacity   5 5
Folding Speed m/min 10-50 10-50
Compressed Air Pressure MPa ≥0.5 ≥0.5
Compressed Air Consumption m³/min 0.2 0.2
Rated Input Power kw 1.3 1.3
Boundary Dimension
Width mm 4090 4290
Depth mm 4000 4000
Height mm 1700 1700
Weight kg 1500 1600





Gamesail Introduction:





Located in the Shanghai,a beautiful city in China, Shanghai Gamesail washing machine CO.,LTD owns many factory buildings,covering an area of 12000 square meters. Founded in early 2002, with years efforts, we have developed a variety of machine series including washing machine, dryer, ironing, folder,dry cleaning machine and other related auxiliary equipment, making the total variety exceeding 70. We are capable of providing diversified solutions to our customers to meet their different needs. Our Gamesail attaches great importance to the innovation and development of technology, the advantage of which comes as our core competence. We have a superior engineering and technique team, among which are our own technicians with over 20 years professional designing experience and world renowned experts in designing washing machines. Additionally, our products are under the product quality management system of ISO9001and European Union CE along with the ISO14001 environment management system.



Product Range:



Washer Extractor (15kg-150kg)

Tumble Dryer (15kg-100kg)

Flawork Ironer (1500mm - 3300mm width, 1-5 roller)

Folding Machine (3300mmx3300mm)

Dry Cleaning Machine (6kg-45kg)

Barrier Washer (30kg-120kg)

Horizontal Washer (35kg-250kg)

Extractor (15kg-100kg)

Finishing Equipment : ironing table, spotting table, garment finisher, press machine, etc.



Why choose Gamesail ?



Energy saving philosophy

Gamesail has a researching and developing team with rich professional technology, among which are our technicians of over 20 years professional designing experience and internationally famous designing experts, through learning from advanced international technology, we never stop the pace of innovation and have succeeded in designing the G series production with our own characteristics. This type of machine enjoys the superiority of advanced designs, low energy consumption, shorter washing period and will lead an industrial innovative trend.



Superior Quality

Leading technology and complete production system are two footstones of us, As quality enjoys the best priority in Gamesail. We have set our goal as building the first rate quality, establishing scientific quality concept and have formulated strict quality management regulations, We have been certificated by ISO9001 international quality management system, European Union CE system, and ISO14001 environment management system. With superior quality, our product boasts its longer service life than other products in such field.



Competitive Price

Holding the tenet of sustainable development and win-win result with our cooperators, we always set our goal as: to be the first in cost-performance. Our products rank high in quality and service life, for which we are chosen by countless customers. However, our price I customer friendly, which ends in our superior cost performance. That best answers why we enjoy great popularity in our customers.





FAQ:

1.If I purchase washer extractor and dryer from your company, will you provide free spare parts?
Yes, we will provide the spare parts for free, please contact us for detailed spare parts list.



2.I 'm from Poland, I need CE certificate to clear custom. Could you provide CE certificate?
No problem. Our major products have passed CE certificate, UK approved, we can provide to help you clear the custom.



3. May I know how soon I can get the machine after I transfer the deposit?
Usually, if the quantity is less than 20 units, we can finish the production in 15-20days. We will try our best to offer the machines to you as soon as possible.



4.Any questions, welcome to contact us, we ill be always help you and support you.



Welcome to visit us and send us inquiry, we will respond to you within 24 hrs.
