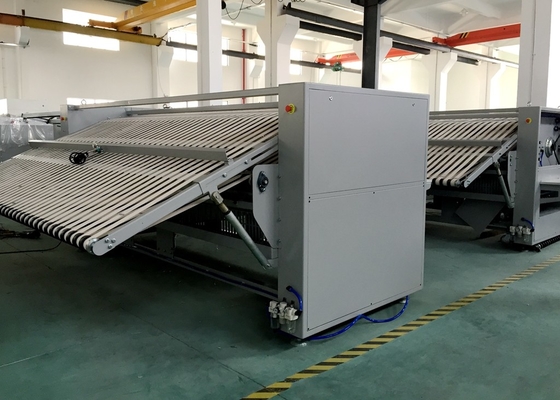

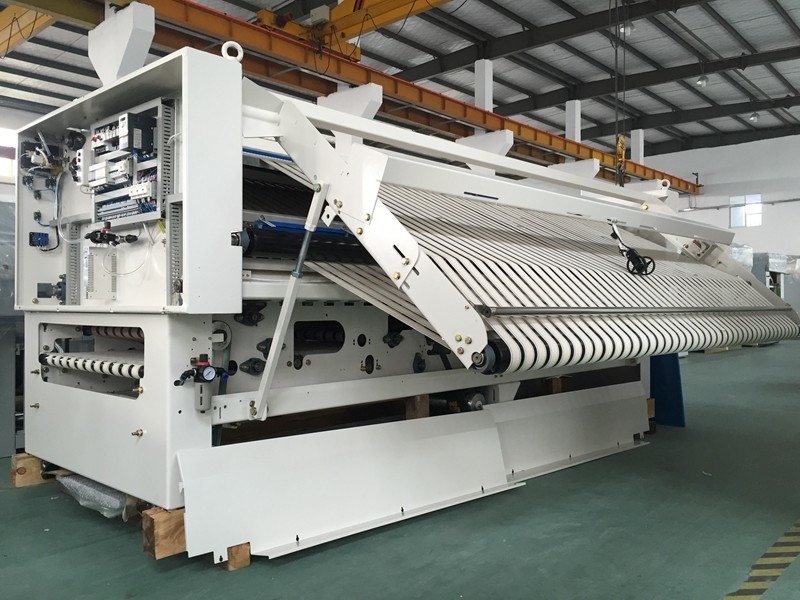

Auto Laundry Folder Bedsheet Folding Machine 110V / 220v / 380v

Auto Laundry Folder Bedsheet Folding Machine 110V / 220v / 380v

large.img.alt
small.img.alt small.img.alt

Large Image :  Auto Laundry Folder Bedsheet Folding Machine 110V / 220v / 380v Get Best Price

Product Details:
Place of Origin: China Shanghai
Brand Name: Gamesail
Certification: CE,ISO9001,SGS,ISO14001
Model Number: ZD3000-V/ZD3300-V
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Pallet or wooden case packing
Payment Terms: D/P, D/A, T/T, L/C, Western Union, MoneyGram
Supply Ability: 100PCS/Month
Detailed Product Description
Size: 3300mm, 3000mm Power: 110V, 220v, 380v, 400v, 415v, 440v
Certification: CE, ISO HS Code: 8451500000
Certificate: CE,ISO9001,ISO14001,SGS Exported To: US, UK, Southeast Asian, South America, Etc.
High Light:

bed sheet folding machine

,

automatic clothes folding machine

Automatic Laundry Folder Automatic Laundry Folding Machine Sheet Folding Machine

Main Parts and Features

1.Integrated with speed controlling and exact positioning system, the cloth conveying system can accurately measure the length of the cloth.

2.Two sets of separated driving motor are controlled by frequency converter and can be continuously viable within the folding speed in 50m/min. The set can match various flatwork ironer.

3.Highly intelligentized liquid crystal displaying and touching operating system can dynamically display the operating situation and can programme according to your folding requirements.

4.With intelligentized judgment of folding standard system, it is equipped with the function of protection and alarming to ensure the high quality of folding effects.

5.Adopting specialized ultrahard and smoothening crafts, the ironing slot can ensure ideal ironing results

6.The problem of linen rolling and wrinkling can be effectively avoided with the function of eliminating static electricity thus effectively improving the folding quality and the credibility and stability of the machine.

7.The folding machine of Gamesail is specially designed according to our customers’ demands. With the folding range of3300x3300mm, the equipment can be twice-folded transversally and third-folded vertically with altogether fifth-folding capacity. It is quite suitable for large, middle-sized and small hotels, hospitals, troops and laundry shops. It is the ideal folding machine of flatwork ironed linen.

ADVANTAGE

. Variable setups for folding
. Adjust the speed and position automatically according to the length of cloth.
. Highly intelligentized touch screen ,display the operation status.
. Program freely according to the folding requirement
. Self-diagnosing system along with security protection system.
. Convenient for daily operation and maintenance.
. Eliminating static to improve the folding quality,credibility and stability.
. Korea LS inverter
. USB port microprocessor enables to reprogram freely&easily by PC.
. French Schneider electric parts. safety and reliable.
. Large drain valves and two drain connections available.
. Each drum tested by dynamic balance machine and the gravity deviation no more than 20g.
. 5 removable compartments Soap hoppers(above 30kg)
. Electric,steam heating.



PRODUCT FEATURES

Parameter

<

Type/Parameter Unit ZD3000-V ZD3300-V
Maximum Folding Length×Width mm 3300×3300 3300×3300
Folding Capacity   5 5
Folding Speed m/min 10-50 10-50
Compressed Air Pressure MPa ≥0.5 ≥0.5
Compressed Air Consumption m³/min 0.2 0.2
Rated Input Power kw 1.3 1.3
Boundary Dimension
Width mm 4090 4290
Depth mm 4000 4000
Height mm 1700 1700
Weight kg 1500 1600


Gamesail Introduction:



Located in the Shanghai,a beautiful city in China, Shanghai Gamesail washing machine CO.,LTD owns many factory buildings,covering an area of 12000 square meters. Founded in early 2002, with years efforts, we have developed a variety of machine series including washing machine, dryer, ironing, folder,dry cleaning machine and other related auxiliary equipment, making the total variety exceeding 70. We are capable of providing diversified solutions to our customers to meet their different needs. Our Gamesail attaches great importance to the innovation and development of technology, the advantage of which comes as our core competence. We have a superior engineering and technique team, among which are our own technicians with over 20 years professional designing experience and world renowned experts in designing washing machines. Additionally, our products are under the product quality management system of ISO9001and European Union CE along with the ISO14001 environment management system.



Product Range:



Washer Extractor (15kg-150kg)

Tumble Dryer (15kg-100kg)

Flawork Ironer (1500mm - 3300mm width, 1-5 roller)

Folding Machine (3300mmx3300mm)

Dry Cleaning Machine (6kg-45kg)

Barrier Washer (30kg-120kg)

Horizontal Washer (35kg-250kg)

Extractor (15kg-100kg)

Finishing Equipment : ironing table, spotting table, garment finisher, press machine, etc.



Why choose Gamesail ?



Energy saving philosophy

Gamesail has a researching and developing team with rich professional technology, among which are our technicians of over 20 years professional designing experience and internationally famous designing experts, through learning from advanced international technology, we never stop the pace of innovation and have succeeded in designing the G series production with our own characteristics. This type of machine enjoys the superiority of advanced designs, low energy consumption, shorter washing period and will lead an industrial innovative trend.



Superior Quality

Leading technology and complete production system are two footstones of us, As quality enjoys the best priority in Gamesail. We have set our goal as building the first rate quality, establishing scientific quality concept and have formulated strict quality management regulations, We have been certificated by ISO9001 international quality management system, European Union CE system, and ISO14001 environment management system. With superior quality, our product boasts its longer service life than other products in such field.



Competitive Price

Holding the tenet of sustainable development and win-win result with our cooperators, we always set our goal as: to be the first in cost-performance. Our products rank high in quality and service life, for which we are chosen by countless customers. However, our price I customer friendly, which ends in our superior cost performance. That best answers why we enjoy great popularity in our customers.





FAQ:



1. How about the payment?

Payment term: 100% payment before shipment or 30% payment as down payment.



2. What is your delivery time?

Our delivery time is 20-30 days after receiving deposit.



3. Such as,our power supply is 415v, 3phase,can you provide it?

We are a professional manufacturer,we can customize the power supply for you without any problem.



4. I come from Philippines, Our power supply is 220v, 3phase, 60hz, can you provide it?
Thanks for your questions. pls don't worry, we are a professional manufacturer, we can customise the power supply for you without any problem.



5. Are you manufacturer? I don't want to cooperate with trading company.
Yes,we are the manufacturer, you are welcome to visit our factory at your any time and checking our machines on site.



Welcome to visit us and send us inquiry, we will respond to you within 24 hrs.
