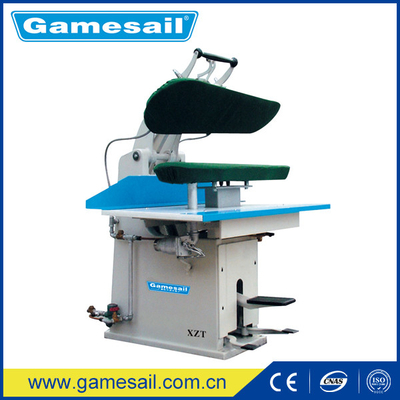

Garment Dry Cleaning Laundry Press Ironing Machine Steam Heated For Laundry Shop

Garment Dry Cleaning Laundry Press Ironing Machine Steam Heated For Laundry Shop

large.img.alt
small.img.alt small.img.alt

Large Image :  Garment Dry Cleaning Laundry Press Ironing Machine Steam Heated For Laundry Shop Get Best Price

Product Details:
Place of Origin: Shanghai, China
Brand Name: Gamesail
Certification: CE,ISO9001
Model Number: XZT
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: $2000-$4000
Packaging Details: Plywood Case for LCL, Plywood Pallet for FCL
Delivery Time: 5-30 work days
Payment Terms: T/T, L/C,D/P, D/A,
Supply Ability: 200 Pcs/Month
Detailed Product Description
Name: Press Machine Heating Type: Steam
Automatic: Automatic & Manual Rated Voltage: 380V,400V,415V,440V,220V
HS Code: 8451300000 Rated Power: 1.1kw
High Light:

commercial ironing equipment

,

automatic cloth ironing machine

Steam Heated Garment Dry Cleaning Laundry Press Ironing Machine



Featurs



Dry Cleaning Clamping Machine XZT-H

This type of dry cleaning clamping machine can be used in ironing seams of trousers’ legs and be matched with woolen ironing table.





Washing Clamping Machine XZT-F

This type of clamping machine aims at the clothes like uniforms and shirts that require high quality of style-maintenance.





Collar and Sleeve Clamping Machine XZT-L

This collar and sleeve clamping machine is easy to operate. In a single piece of operation, the collar and one sleeve can be ironed and the next time the shoulder part and rest sleeves can be finished. Thus, this type of machine is quite efficient.





Mushroom-shaped Press XZT-Q

This type of machine is suitable for some corner parts of the clothe like the trousers’ head, short sleeve, etc.



Technical Parameters



Type/Parameter XZT-H XZT-F XZT-L XZT-Q
Rated Voltage (V/Hz) 380/50 380/50 / 380/50
Rated Power(kW) 1.1 1.1 / 1.1
Steam Pressure(Mpa) 0.4-0.5 0.4-0.5 0.4-0.6 0.4-0.5
Steam Consumption(Kg/H) 25 15-20 15 13-15
Diameter of Steam Pipe(Inch) G1/2” G1/2” G1/2” G1/2”
Air Pressure(Mpa) 0.35-0.4 0.35-0.4 0.4-0.5 0.35-0.4
Compressed Air Joint Dimensions (mm) Φ6 Φ6 Φ6 Φ6
Boundary Dimension
Width (mm) 1350 1400 1400 1400
Length (mm) 1100 1280 1280 1000
Height (mm) 1400 1240 1240 1240
Weight (Kg) 300 250 250 300
