Home ProductsBarrier Washing Machine

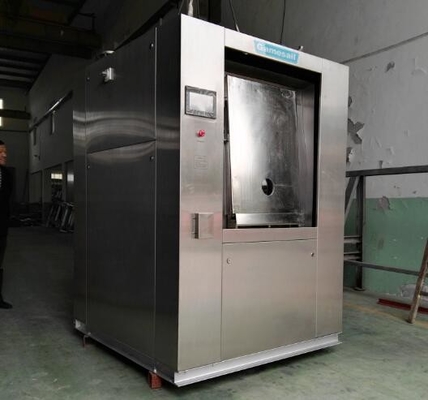

150kg Extractor Barrier Washing Machine Automatic Inverter Control Two Doors

150kg Extractor Barrier Washing Machine Automatic Inverter Control Two Doors

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  150kg Extractor Barrier Washing Machine Automatic Inverter Control Two Doors Get Best Price

Product Details:
Place of Origin: China Shanghai
Brand Name: Gamesail
Certification: CE,ISO9001
Model Number: N1030 N1050 N1100
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: Pallet or wooden case packing
Payment Terms: D/P, D/A, T/T, L/C, Western Union, MoneyGram
Supply Ability: 200PCS/Month
Detailed Product Description
Capacity:: 15kg-120kg Loading Type: Front Loading,Back Unloading
Raw Material: Stainless Steel 304 Heating:: Electric, Steam, Electric&Steam,Hot & Cold Water
Automatic: Automatic & Manual Voltage: 110v,220v,380v,400v,440v
Packing: Pallet Or Wooden Case HS Code: 84502000
Suspension: Airbag Suspension Shock Structure Door: Two Doors
Compartment: One Drum With Two Compartments
High Light:

laundrette washing machines

,

professional laundry equipment

Automatic inverter control two doors design 100kg barrier washing machine, barrier washer extractor

    Shanghai Gamesail line of industrial and commercial washer-extractors are designed to be effortless and powerful while maintaining a low cost of ownership. Our entire line saves you money over the life of the machine. In addition to a low initial investment, our commercial machines have fewer parts. Fewer parts mean fewer things to break, which leads to less down time for the equipment and fewer repairs.

    Higher extraction equals less time in the dryer which reduces energy consumption and increases savings. The savings start with commercial washing machines that are designed to be easily installed. Your laundry can be up and running in hours instead of days.

Materials and Structure

    N-series barrier-type washers are able to meet the washing requirement of bacteria-free, dust-free and static-free. Laundry room is divided into two separated operating ranges "clean zone" and "non-clean zone" through isolated-type washer and isolation wall. Linen and dirty clothes will be loaded into the washing machine through the loading door which is openned on the side of the “non-clean zone". After washing is finished, the linen and clothes will be carried out from the "clean zone". And the air cleaning control system will prevent bacteria and dust particles flowing from the "non-clean zone" to "clean zone", thus to avoid secondary pollution and cross-infection of clean linen and clothes.

    N-series isolated-type washers are with advanced technology, precise structure and excellent performance.It's convenient to maintain and economic for operation.It's widely used in hospitals, field of food processing, bio-pharmaceutical, nuclear power plants where it's extremely strict on dust-free and bacteria-free.

Main Features
1. Adopt touch-type programmable computer control system, it is highly automatic, safe, stability and anti-shock.
2. It is with a drum with two compartments and two doors structure.Unloading and loading area is seperated.
3. We adopt world famous qualified parts suppliers.like Japan Yaskawa inverter,MIT V-belts and so on to ensure the high quality.
4. We have got CE,IEC,ISO,SASO certificates.
5. USB port microprocessor enables to reprogram freely&easily by PC.
6. We provide good pre-sales and after-sales service.We can make the laundry layout drawing for the clients. and lifelong technology conulting service.Easy access to all parts for maintenance.



PERSONAL CARD

Name Card


PRODUCT FEATURES
Type/Parameter N1030 N1050 N1070 N1100 N1120
Rated Capacity (kg) 30 50 70 100 120
Power of Motor (kW) 4 5.5 7.5 11 15
Diameter of Cold Water Entering Pipe (Inch) 1'' 1'' 1'' 1'' 1''
Diameter of Hot Water Entering Pipe (Inch) 1'' 1'' 1'' 1'' 1''
Diameter of Steam Pipe (Inch) 1/2'' 3/4'' 1'' 1'' 1''
Diameter of Draining Pipe (Inch) 3'' 3'' 4'' 4'' 4''
Boundary Diameter
Width(mm) 1320 1440 1610 1720 1980
Length(mm) 1100 1500 1500 1550 1710
Height(mm) 1820 1950 2140 2330 2330
Weight(kg) 1550 2250 2850 3250 3900

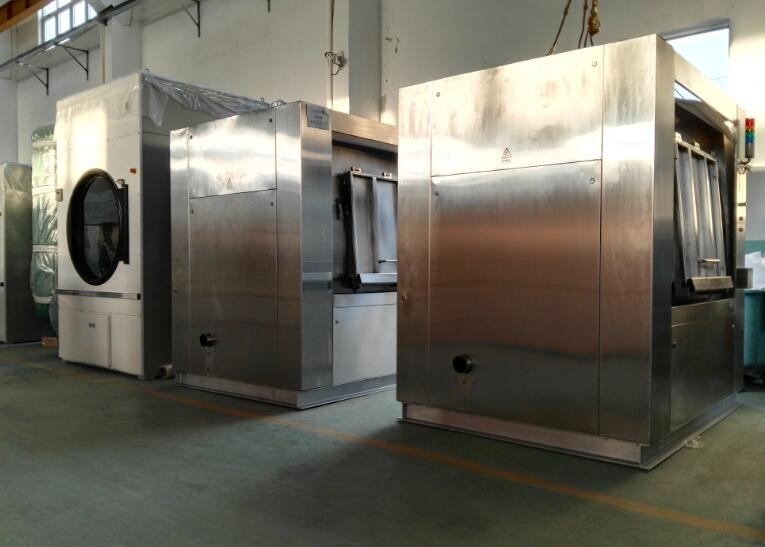

THE FACTORY

    Our commercial washers are engineered with the finest components to ensure a longer lasting machine. Our inverter driven single motor design offers flexible operation, precise speed control and verified motor protection. Every component that comes into contact with the wash solution is Stainless Steel. The entire Gamesail line features our proven frame design, the strongest in the industry. The backbone of any machine is the frame and ours is designed and tested to stand the true rigorous demands of continuous operation in your laundry.



Why Choose Gamesail

1. Supply you top quality products with competitive price under the same quality level,

different products according to your different market demands.



2. Strictly control the whole production process and guarantee punctual delivery, Test each

of our products one by one before packing to ensure the quality.



3. Supply you a good pre-sale, in-sale and after-sale service, We're not just working partners,

but also friends and family.



4. When you come to our factory, we will try our best to supply you all services to make you feel

like at home.



150kg Extractor Barrier Washing Machine  Automatic Inverter Control Two Doors 1
