Energy Saving Water Efficient Barrier Washing Machine mounted long lifetime

Energy Saving Water Efficient Barrier Washing Machine mounted long lifetime

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Energy Saving Water Efficient Barrier Washing Machine mounted long lifetime Get Best Price

Product Details:
Place of Origin: China Shanghai
Brand Name: Gamesail
Certification: CE,ISO9001
Model Number: N1030 N1050 N1100
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: Pallet or wooden case packing
Payment Terms: D/P, D/A, T/T, L/C, Western Union, MoneyGram
Supply Ability: 200PCS/Month
Detailed Product Description
Capacity:: 15kg-120kg Loading Type: Front Loading,Back Unloading
Raw Material: Stainless Steel 304 Heating:: Electric, Steam, Electric&Steam,Hot & Cold Water
Automatic: Automatic & Manual Voltage: 110v,220v,380v,400v,440v
Packing: Pallet Or Wooden Case HS Code: 84502000
Suspension: Airbag Suspension Shock Structure Door: Two Doors
Compartment: One Drum With Two Compartments
High Light:

commercial laundry equipment

,

laundrette washing machines

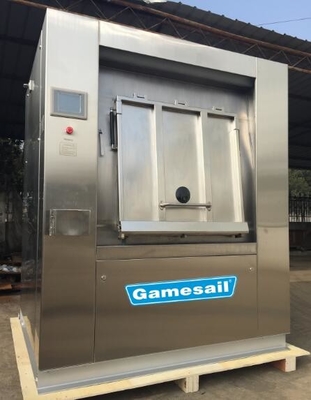

Automatic two doors design 30kg 50kg 100kg barrier washing machine,hospital used barrier washer extractor

Materials and Structure
    N-series barrier-type washers are able to meet the washing requirement of bacteria-free, dust-free and static-free. Laundry room is divided into two separated operating ranges "clean zone" and "non-clean zone" through isolated-type washer and isolation wall. Linen and dirty clothes will be loaded into the washing machine through the loading door which is openned on the side of the “non-clean zone". After washing is finished, the linen and clothes will be carried out from the "clean zone". And the air cleaning control system will prevent bacteria and dust particles flowing from the "non-clean zone" to "clean zone", thus to avoid secondary pollution and cross-infection of clean linen and clothes.
    N-series isolated-type washers are with advanced technology, precise structure and excellent performance.It's convenient to maintain and economic for operation.It's widely used in hospitals, field of food processing, bio-pharmaceutical, nuclear power plants where it's extremely strict on dust-free and bacteria-free.

Barrier washer
Softmount Barrier Washer-Extractors for Small, Medium, and Large Sized On Premise Laundry Applications Where Hygiene is a Major Concern, Including Health Care and Clean Room Operations

· 15, 30, 50, 70, 100 , 120 and 200 kilogram capacities

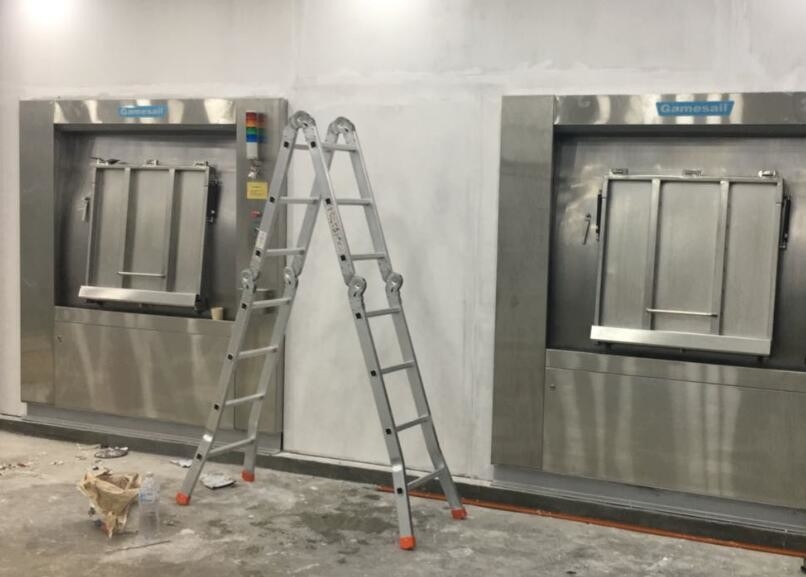

· Designed to be built into the wall separating the clean and soiled sides of the facility
· 350G extraction equals less time in the dryer, yielding tremendous savings
· Powerful and easy to use control with unequalled flexibility
· Two pocket design. easy to operate.

· Our Softmount Barrier / Pass Through washer-extractors is perfect for your hospital laundry. Freestanding operation and our excellent pricing means you'll save time and money in your laundry. Simple operator interface and robust design means infrequent maintenance. All stainless steel wash area protects your investment. Available in 15, 30, 50, 70, 100, 120 and 200 kilogram capacities



PERSONAL CARD
Name Card


PRODUCT FEATURES
Type/ParameterN1030N1050N1070N1100N1120
Rated Capacity (kg)305070100120
Power of Motor (kW)45.57.51115
Diameter of Cold Water Entering Pipe (Inch)1''1''1''1''1''
Diameter of Hot Water Entering Pipe (Inch)1''1''1''1''1''
Diameter of Steam Pipe (Inch)1/2''3/4''1''1''1''
Diameter of Draining Pipe (Inch)3''3''4''4''4''
Boundary Diameter
Width(mm)13201440161017201980
Length(mm)11001500150015501710
Height(mm)18201950214023302330
Weight(kg)15502250285032503900


THE FACTORY
    Located in the Shanghai, a beautiful city in China, Shanghai Gamesail washing machine CO., LTD owns many factory buildings, covering an area of 12000 square meters.
    Founded in early 2002, with years’ efforts, we have developed a variety of machine series including water washing, drying, ironing, dry cleaning and other related auxiliary equipment, making the total variety exceeding 70. We are capable of providing diversified solutions to our customers to meet their different needs.



Why Choose Gamesail
1. Supply you top quality products with competitive price under the same quality level,
different products according to your different market demands.

2. Strictly control the whole production process and guarantee punctual delivery, Test each
of our products one by one before packing to ensure the quality.

3. Supply you a good pre-sale, in-sale and after-sale service, We're not just working partners,
but also friends and family.

4. When you come to our factory, we will try our best to supply you all services to make you feel
like at home.
