130kg Big Size Hotel Laundry Equipment , High Performance Industrial Washing Machine

130kg Big Size Hotel Laundry Equipment , High Performance Industrial Washing Machine

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  130kg Big Size Hotel Laundry Equipment , High Performance Industrial Washing Machine Get Best Price

Product Details:
Place of Origin: China Shanghai
Brand Name: Gamesail
Certification: CE,ISO9001
Model Number: XGQ-FII
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: Pallet or wooden case packing
Payment Terms: D/P, D/A, T/T, L/C, Western Union, MoneyGram
Supply Ability: 200PCS/Month
Detailed Product Description
Capacity:: 15kg-150kg Loading Type: Front Loading
Raw Material: Stainless Steel 304 Heating:: Electric, Steam, Electric&Steam,Hot & Cold Water
Automatic: Automatic & Manual Voltage: 110v,220v,380v,400v,440v
Packing: Pallet Or Wooden Case Suspension: Full Suspension Shock Structure
Door: Front And Single
High Light:

industrial washing machine

,

commercial grade washing machine

Automatic 130kg big size hotel/hospital/laundry used industrial washing machine with double drain design



    Shanghai Gamesail line of industrial and commercial washer-extractors are designed to be effortless and powerful while maintaining a low cost of ownership. Our entire line saves you money over the life of the machine. In addition to a low initial investment, our commercial machines have fewer parts. Fewer parts mean fewer things to break, which leads to less down time for the equipment and fewer repairs.

Higher extraction equals less time in the dryer which reduces energy consumption and increases savings. The savings start with commercial washing machines that are designed to be easily installed. Your laundry can be up and running in hours instead of days.

    Our commercial washers are engineered with the finest components to ensure a longer lasting machine. Our inverter driven single motor design offers flexible operation, precise speed control and verified motor protection. Every component that comes into contact with the wash solution is Stainless Steel. The entire Gamesail line features our proven frame design, the strongest in the industry. The backbone of any machine is the frame and ours is designed and tested to stand the true rigorous demands of continuous operation in your laundry.



Main Features
· With fully-closed and rear-drainage structure,Large drain valves and two drain connections available.It is good for environmental protection.
· It is with a drum without compartment and single door structure convenivent to loading or unloading, and reduces the labor intensity and improves the clean level.
· The drum and case are both made of high quality stainless steel with the advantages of stain resistance and durability.Each drum tested by dynamic balance machine and the gravity deviation no more than 20g.

· 15, 20, 25, 30, 50, 70, 100 and 130 kilogram capacities

· 350G extraction equals less time in the dryer

· Powerful and easy to use control with unequalled flexibility

· 5 compartment supply dispenser for liquid and dry chemicals

· 5 connections for automatic chemical injection

· Large door opening for easier loading and unloading

· Strong door and hinge system made of 304 stainless steel

· Dry zone bearings are not damaged should seals leak



PERSONAL CARD

Name Card


PRODUCT PICTURES

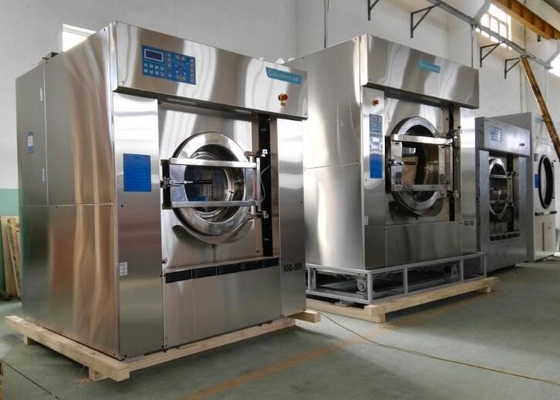

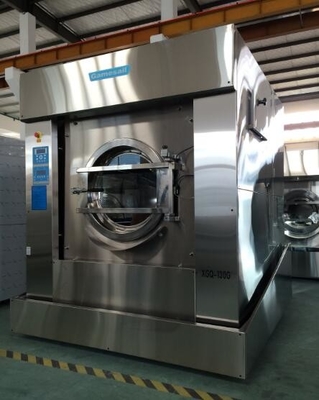

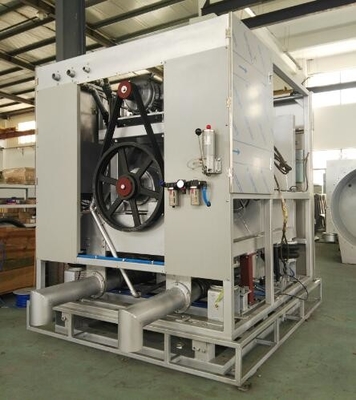

130kg Big Size Hotel Laundry Equipment , High Performance Industrial Washing Machine 1


PRODUCT FEATURES

Parameter

TYPE XGQ-15FII XGQ-20FII XGQ-25FII XGQ-30FII XGQ-50FII XGQ-70FII XGQ-100FII XGQ-130FII
CAPACITY
Drum capacity kg 15 20 25 30 50 70 100 130
Drum volume L 160 195 250 315 540 708 1010 1300
Number of drums   1 1 1 1 1 1 1 1
Number ofloading doors   1 1 1 1 1 1 1 1
Number of unloading doors   1 1 1 1 1 1 1 1
DRUM SPEED
Washing speed rpm 50 48 45 37 36 35 34 32
Highest spin speed rpm 800 780 750 750 720 700 680 635
G-force rpm 230 240 250 285 300 300 300 300
HEATING
Electric kw 14 18 21 21 42 46 / /
Steam ratio kg/kg 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9
CONNECTIONS
Water inlet   ZG1.0" ZG1.0" ZG1.2" ZG1.5" ZG1.5" ZG1.5" ZG1.5" ZG2.0"
Steam inlet   ZG3/4" ZG3/4" ZG3/4" ZG1.0" ZG1.0" ZG1.0" ZG1.0" ZG1.5"
DIMENTIONS
Width mm 930 1000 1150 1460 1610 1650 1760 1950
Depth mm 1100 1170 1220 1440 1680 1960 2090 2220
Height mm 1530 1560 1600 1840 2040 2160 1970 2175



THE FACTORY

    Gamesail has a researching and developing team with rich professional technology, among which are our technicians of over 20 years’ professional designing experience and internationally famous designing experts. Through learning from advanced international technology, we never stop the pace of innovation and have succeeded in designing the G series production with our own characteristics. This type of machine enjoys the superiority of advanced designs, low energy consumption, shorter washing period and will lead an industrial innovative trend.

    Holding the tenet of sustainable development and win-win result with our cooperators, we always set our goal as: to be the first in cost-performance. Our products rank high in quality and service life, for which we are chosen by countless customers. However, our price is customer friendly, which ends in our superior cost-performance. That best answers why we enjoy great popularity in our customers.



Why Choose Gamesail

1. Supply you top quality products with competitive price under the same quality level,
different products according to your different market demands.

2. Strictly control the whole production process and guarantee punctual delivery, Test each
of our products one by one before packing to ensure the quality.

3. Supply you a good pre-sale, in-sale and after-sale service, We're not just working partners,
but also friends and family.

4. When you come to our factory, we will try our best to supply you all services to make you feel
like at home.

FAQ
1.Q:Are you a factory or trading company?
A: We are a factory.

2.Q:Where is your factory located?
A: Our factory is in Shanghai,China.

3.Q:What is the material of your products?
A: We are always high quality material and world famous components.

4.Q:How about quality control in your factory?
A: We are always paying great attentions to quality controlling from the beginning to the end.

5.Q:How about guarantee?
A: It's within 1 year after goods is discharged in the destination.
