Product Details:
Payment & Shipping Terms:
|
Capacity:: | 15kg,20kg,25kg,30kg,50kg,70kg,100kg,130kg,150kg | Loading Type: | Front Loading |
---|---|---|---|
Raw Material: | Stainless Steel 304 | Heating:: | Electric, Steam, Electric&Steam,Hot & Cold Water |
Control: | Micro Computer Control | Automatic: | Automatic & Manual |
Voltage: | 110v,220v,380v,400v,440v | Packing: | Pallet Or Wooden Case |
HS Code: | 84502000 | ||
High Light: | industrial washer dryer,commercial laundromat equipment |
Parameter

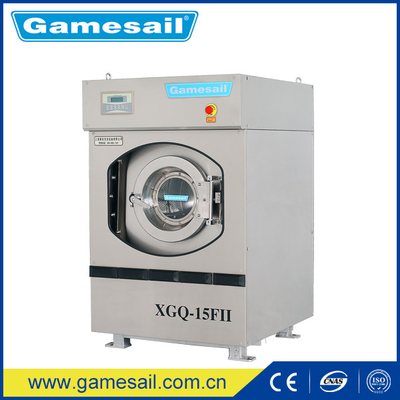

TYPE | XGQ-15FII | XGQ-20FII | XGQ-25FII | XGQ-30FII | XGQ-50FII | XGQ-70FII | XGQ-100FII | XGQ-130FII | |
CAPACITY | |||||||||
Drum capacity | kg | 15 | 20 | 25 | 30 | 50 | 70 | 100 | 130 |
Drum volume | L | 160 | 195 | 250 | 315 | 540 | 708 | 1010 | 1300 |
Number of drums | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Number ofloading doors | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Number of unloading doors | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
DRUM SPEED | |||||||||
Washing speed | rpm | 50 | 48 | 45 | 37 | 36 | 35 | 34 | 32 |
Highest spin speed | rpm | 800 | 780 | 750 | 750 | 720 | 700 | 680 | 635 |
G-force | rpm | 230 | 240 | 250 | 285 | 300 | 300 | 300 | 300 |
HEATING | |||||||||
Electric | kw | 14 | 18 | 21 | 21 | 42 | 46 | / | / |
Steam ratio | kg/kg | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
CONNECTIONS | |||||||||
Water inlet | ZG1.0" | ZG1.0" | ZG1.2" | ZG1.5" | ZG1.5" | ZG1.5" | ZG1.5" | ZG2.0" | |
Steam inlet | ZG3/4" | ZG3/4" | ZG3/4" | ZG1.0" | ZG1.0" | ZG1.0" | ZG1.0" | ZG1.5" | |
DIMENTIONS | |||||||||
Width | mm | 930 | 1000 | 1150 | 1460 | 1610 | 1650 | 1760 | 1950 |
Depth | mm | 1100 | 1170 | 1220 | 1440 | 1680 | 1960 | 2090 | 2220 |
Height | mm | 1530 | 1560 | 1600 | 1840 | 2040 | 2160 | 1970 | 2175 |
THE FACTORY
Located in the Shanghai, a beautiful city in China, Shanghai Gamesail washing machine CO., LTD owns many factory buildings, covering an area of 12000 square meters.
Founded in early 2002, with years’ efforts, we have developed a variety of machine series including water washing, drying, ironing, dry cleaning and other related auxiliary equipment, making the total variety exceeding 70. We are capable of providing diversified solutions to our customers to meet their different needs.
Our commercial washers are engineered with the finest components to ensure a longer lasting machine. Our inverter driven single motor design offers flexible operation, precise speed control and verified motor protection. Every component that comes into contact with the wash solution is Stainless Steel. The entire Gamesail line features our proven frame design, the strongest in the industry. The backbone of any machine is the frame and ours is designed and tested to stand the true rigorous demands of continuous operation in your laundry..
