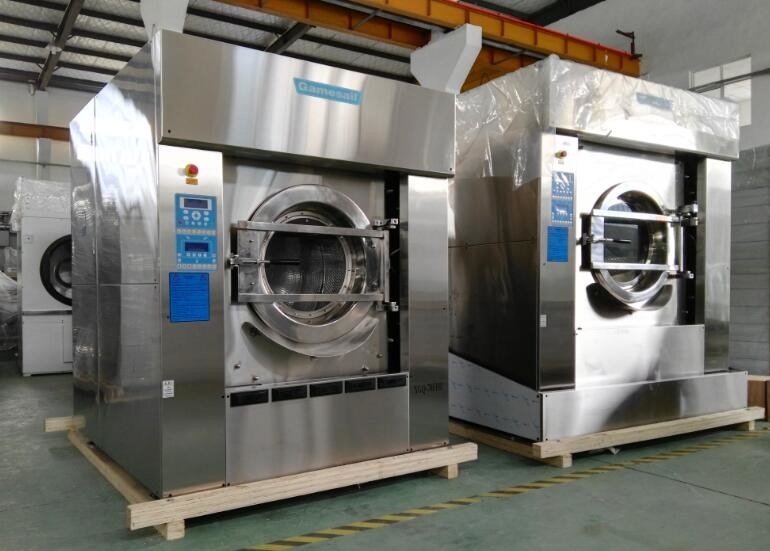

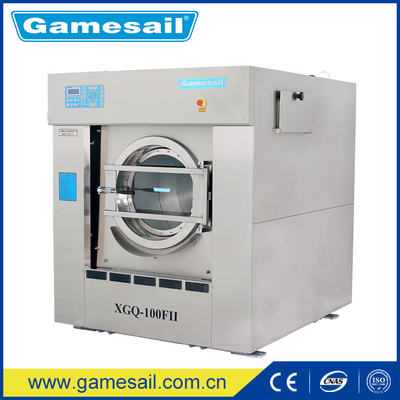

15kg 20kg 25kg Commercial Clothes Washers , High Efficiency Industrial Washer Machine

15kg 20kg 25kg Commercial Clothes Washers , High Efficiency Industrial Washer Machine

large.img.alt
small.img.alt small.img.alt

Large Image :  15kg 20kg 25kg Commercial Clothes Washers , High Efficiency Industrial Washer Machine Get Best Price

Product Details:
Place of Origin: China Shanghai
Brand Name: Gamesail
Certification: CE,ISO9001
Model Number: XGQ-FII
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: Pallet or wooden case packing
Payment Terms: D/P, D/A, T/T, L/C, Western Union, MoneyGram
Supply Ability: 200PCS/Month
Detailed Product Description
Capacity:: 15kg,20kg,25kg,30kg,50kg,70kg,100kg,130kg,150kg Loading Type: Front Loading
Raw Material: Stainless Steel 304 Heating:: Electric, Steam, Electric&Steam,Hot & Cold Water
Control: Micro Computer Control Voltage: 110v,220v,380v,400v,440v
Packing: Pallet Or Wooden Case HS Code: 84502000
High Light:

commercial laundry machines

,

commercial laundromat equipment

15kg,20kg,25kg,30kg,50kg,70kg,100kg,130kg,150kg laundry washing machine
Main Features
1. Adopt touch-type programmable computer control system, it is highly automatic, safe, stability and anti-shock.
2. Adopt the international latest complete suspension structure to reduce shock, Real meaing of free standing,No damage to machine while high spin.it can ensure an ideal anti-shock effect even on higher floors. Patented anti-vibration structure spring,shock absorption reaches to 95%(Patent no.200820056884.2)
3. With fully-closed and rear-drainage structure,Large drain valves and two drain connections available.It is good for environmental protection.
4. It is with a drum without compartment and single door structure convenivent to loading or unloading, and reduces the labor intensity and improves the clean level.
5. The drum and case are both made of high quality stainless steel with the advantages of stain resistance and durability.Each drum tested by dynamic balance machine and the gravity deviation no more than 20g.
6. We adopt world famous qualified parts suppliers.like Japan Yaskawa inverter,MIT V-belts,American TWB bearings,French Schneider electric parts,Imported Viton seal makes no leakage,and so on to ensure the high quality.
7. We have got CE,IEC,ISO,SASO certificates.Our machines have been sold to USA, UK, Asia, Africa, Amecian, Canada, India and many other countries.
8. Frequency controlled motor.the washing and extractor speed is adjustable.removable compartments Soap hoppers(above 30kg)

PERSONAL CARD

Name Card


PRODUCT FEATURES

Parameter

TYPE XGQ-15FII XGQ-20FII XGQ-25FII XGQ-30FII XGQ-50FII XGQ-70FII XGQ-100FII XGQ-130FII
CAPACITY
Drum capacity kg 15 20 25 30 50 70 100 130
Drum volume L 160 195 250 315 540 708 1010 1300
Number of drums   1 1 1 1 1 1 1 1
Number ofloading doors   1 1 1 1 1 1 1 1
Number of unloading doors   1 1 1 1 1 1 1 1
DRUM SPEED
Washing speed rpm 50 48 45 37 36 35 34 32
Highest spin speed rpm 800 780 750 750 720 700 680 635
G-force rpm 230 240 250 285 300 300 300 300
HEATING
Electric kw 14 18 21 21 42 46 / /
Steam ratio kg/kg 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9
CONNECTIONS
Water inlet   ZG1.0" ZG1.0" ZG1.2" ZG1.5" ZG1.5" ZG1.5" ZG1.5" ZG2.0"
Steam inlet   ZG3/4" ZG3/4" ZG3/4" ZG1.0" ZG1.0" ZG1.0" ZG1.0" ZG1.5"
DIMENTIONS
Width mm 930 1000 1150 1460 1610 1650 1760 1950
Depth mm 1100 1170 1220 1440 1680 1960 2090 2220
Height mm 1530 1560 1600 1840 2040 2160 1970 2175



THE FACTORY

    Located in the Shanghai, a beautiful city in China, Shanghai Gamesail washing machine CO., LTD owns many factory buildings, covering an area of 12000 square meters.
    Founded in early 2002, with years’ efforts, we have developed a variety of machine series including water washing, drying, ironing, dry cleaning and other related auxiliary equipment, making the total variety exceeding 70. We are capable of providing diversified solutions to our customers to meet their different needs.
    Our Gamesail attaches great importance to the innovation and development of technology, the advantage of which comes as our core competence. We have a superior engineering and technique team, among which are our own technicians with over 20 years’ professional designing experience and world renowned experts in designing washing machines. Our technicians are always organized to go abroad to exchange views and learn from international professionals of the most advanced technology and industrial trend in a bid to be the forerunner in this field.
    Gamesail invested a lot in technological research and development. By the year 2014, Gamesail have won 16 national patents and more are under application. In 2012, we are awarded the “Shanghai High-tech Achievement Transformation Project”. In 2013, we won the reputation of “Shanghai Innovation Fund Project” and meanwhile awarded the title of “Shanghai Energy-saving Product”. Additionally, our products are under the product quality management system of ISO9001and European Union CE along with the ISO14001 environment management system.
    In 21st century, the development trend of technology is energy-saving. Keeping pace with this trend, we Gamesail have invested a lot in developing products of energy-saving series. In the year 2011, 2013 and 2014, we respectively launched the energy-saving series products of drying machine, washing machine and ironing machine. In the future, we will continue to exert ourselves to innovate and design better products for the contribution to protecting our mother-earth.
    Gamesail will always be in the pioneering spirits of high level, large scale, sound quality and high technology to meet customers’ needs with our more advanced, more energy-saving and more professional products.
