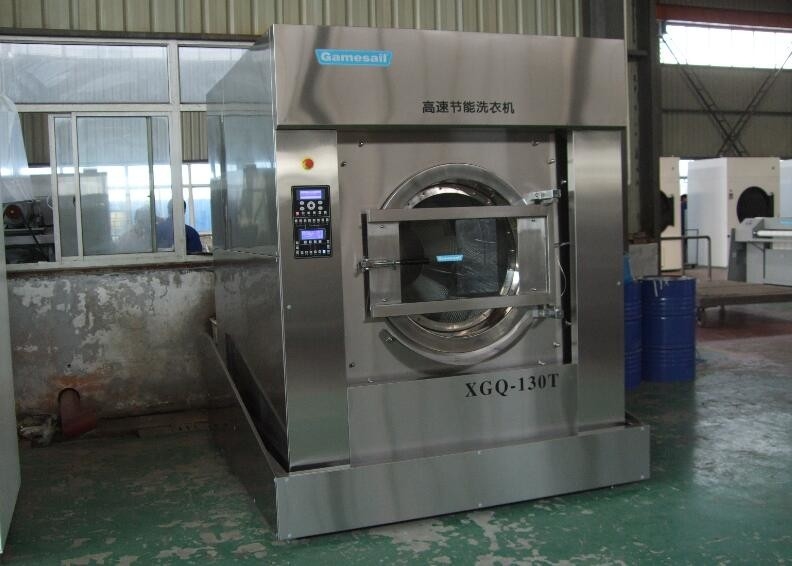

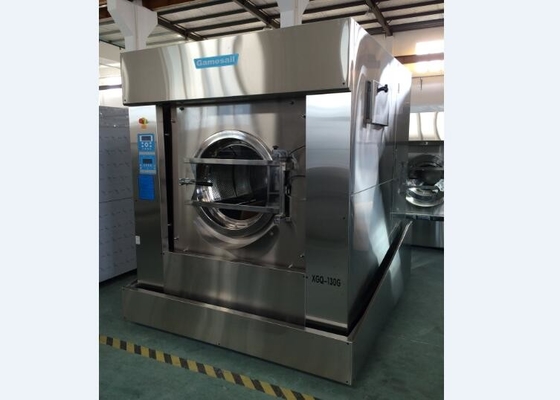

Automatic Rotary Laundry Washing Machine 150kg Extractor For Barrier Washing
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Capacity:: | 15kg,20kg,25kg,30kg,50kg,70kg,100kg,130kg,150kg | Loading Type: | Front Loading |
|---|---|---|---|
| Raw Material: | Stainless Steel 304 | Heating:: | Electric, Steam, Electric&Steam,Hot & Cold Water |
| Control: | Micro Computer Control | Automatic: | Automatic & Manual |
| Voltage: | 110v,220v,380v,400v,440v | Packing: | Pallet Or Wooden Case |
| HS Code: | 84502000 | ||
| High Light: | commercial laundry machines,industrial washer dryer |
||
15, 30, 50, 100kg Laundry Washing Machine with best washing performance
Main Features
1. Adopt touch-type programmable computer control system, it is highly automatic, safe, stability and anti-shock.
1. Adopt touch-type programmable computer control system, it is highly automatic, safe, stability and anti-shock.
2. Adopt the international latest complete suspension structure to reduce shock, Real meaing of free standing,No damage to machine while high spin.it can ensure an ideal anti-shock effect even on higher floors. Patented anti-vibration structure spring,shock absorption reaches to 95%(Patent no.200820056884.2)
3. With fully-closed and rear-drainage structure,Large drain valves and two drain connections available.It is good for environmental protection.
4. It is with a drum without compartment and single door structure convenivent to loading or unloading, and reduces the labor intensity and improves the clean level.
5. The drum and case are both made of high quality stainless steel with the advantages of stain resistance and durability.Each drum tested by dynamic balance machine and the gravity deviation no more than 20g.
6. We adopt world famous qualified parts suppliers.like Japan Yaskawa inverter,MIT V-belts,American TWB bearings,French Schneider electric parts,Imported Viton seal makes no leakage,and so on to ensure the high quality.
7. We have got CE,IEC,ISO,SASO certificates.Our machines have been sold to USA, UK, Asia, Africa, Amecian, Canada, India and many other countries.
8. Frequency controlled motor.the washing and extractor speed is adjustable.removable compartments Soap hoppers(above 30kg)
9. USB port microprocessor enables to reprogram freely&easily by PC.
10. We provide good pre-sales and after-sales service.We can make the laundry layout drawing for the clients. and lifelong technology conulting service.Easy access to all parts for maintenance.
11, The machines heating way have electric heating, steam heating and cold & hot water types.
PERSONAL CARD
PRODUCT FEATURES
Parameter
| TYPE | XGQ-15FII | XGQ-20FII | XGQ-25FII | XGQ-30FII | XGQ-50FII | XGQ-70FII | XGQ-100FII | XGQ-130FII | |
| CAPACITY | |||||||||
| Drum capacity | kg | 15 | 20 | 25 | 30 | 50 | 70 | 100 | 130 |
| Drum volume | L | 160 | 195 | 250 | 315 | 540 | 708 | 1010 | 1300 |
| Number of drums | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Number ofloading doors | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Number of unloading doors | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| DRUM SPEED | |||||||||
| Washing speed | rpm | 50 | 48 | 45 | 37 | 36 | 35 | 34 | 32 |
| Highest spin speed | rpm | 800 | 780 | 750 | 750 | 720 | 700 | 680 | 635 |
| G-force | rpm | 230 | 240 | 250 | 285 | 300 | 300 | 300 | 300 |
| HEATING | |||||||||
| Electric | kw | 14 | 18 | 21 | 21 | 42 | 46 | / | / |
| Steam ratio | kg/kg | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
| CONNECTIONS | |||||||||
| Water inlet | ZG1.0" | ZG1.0" | ZG1.2" | ZG1.5" | ZG1.5" | ZG1.5" | ZG1.5" | ZG2.0" | |
| Steam inlet | ZG3/4" | ZG3/4" | ZG3/4" | ZG1.0" | ZG1.0" | ZG1.0" | ZG1.0" | ZG1.5" | |
| DIMENTIONS | |||||||||
| Width | mm | 930 | 1000 | 1150 | 1460 | 1610 | 1650 | 1760 | 1950 |
| Depth | mm | 1100 | 1170 | 1220 | 1440 | 1680 | 1960 | 2090 | 2220 |
| Height | mm | 1530 | 1560 | 1600 | 1840 | 2040 | 2160 | 1970 | 2175 |
THE FACTORY
Located in the Shanghai, a beautiful city in China, Shanghai Gamesail washing machine CO., LTD owns many factory buildings, covering an area of 12000 square meters.
Founded in early 2002, with years’ efforts, we have developed a variety of machine series including water washing, drying, ironing, dry cleaning and other related auxiliary equipment, making the total variety exceeding 70. We are capable of providing diversified solutions to our customers to meet their different needs.
Our Gamesail attaches great importance to the innovation and development of technology, the advantage of which comes as our core competence. We have a superior engineering and technique team, among which are our own technicians with over 20 years’ professional designing experience and world renowned experts in designing washing machines. Our technicians are always organized to go abroad to exchange views and learn from international professionals of the most advanced technology and industrial trend in a bid to be the forerunner in this field.
Gamesail invested a lot in technological research and development. By the year 2014, Gamesail have won 16 national patents and more are under application. In 2012, we are awarded the “Shanghai High-tech Achievement Transformation Project”. In 2013, we won the reputation of “Shanghai Innovation Fund Project” and meanwhile awarded the title of “Shanghai Energy-saving Product”. Additionally, our products are under the product quality management system of ISO9001and European Union CE along with the ISO14001 environment management system.
We are one of the grey hair for laundry washing machine manufacture.Our core competencies are laundry washing machine.Our sales pitch is WITH US YOUR MONEY IN SAFE YOUR BUSINESS IN SAFE
1.Our machines are energy-saving design,it can help you save cost and money.
2.Our machines have the high quality as European and USA standard.
3.Our machines have been sold to more than 100 countries.
4.CE,ISO and IEC certificates
