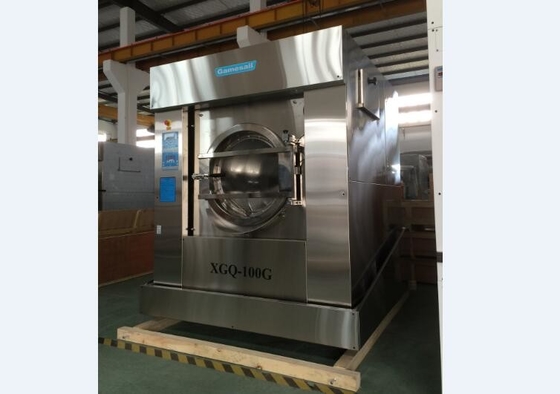

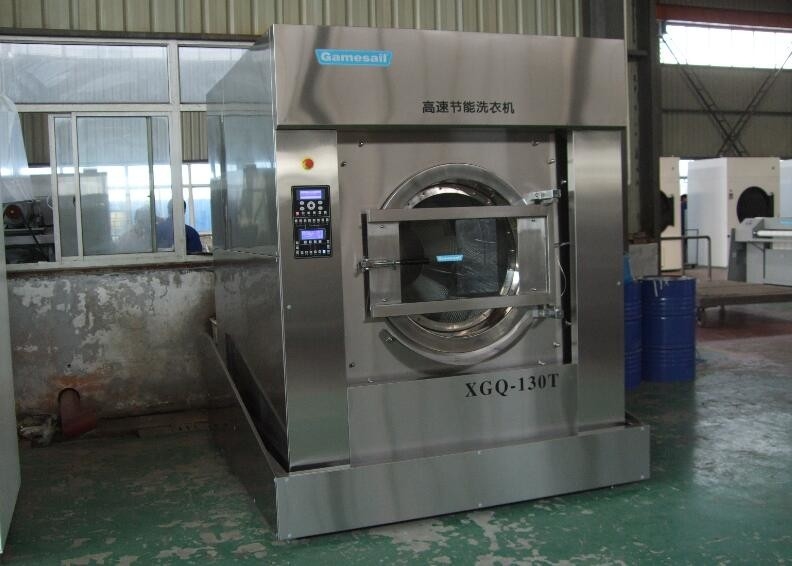

Front Loading Laundry Washing Machine 100kg 130kg With Front Tilting Function

Front Loading Laundry Washing Machine 100kg 130kg With Front Tilting Function

large.img.alt
small.img.alt small.img.alt

Large Image :  Front Loading Laundry Washing Machine 100kg 130kg With Front Tilting Function Get Best Price

Product Details:
Place of Origin: China Shanghai
Brand Name: Gamesail
Certification: CE,ISO9001
Model Number: XGQ-FII
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: Pallet or wooden case packing
Payment Terms: D/P, D/A, T/T, L/C, Western Union, MoneyGram
Supply Ability: 200PCS/Month
Detailed Product Description
Capacity:: 15kg,20kg,25kg,30kg,50kg,70kg,100kg,130kg,150kg Loading Type: Front Loading
Raw Material: Stainless Steel 304 Heating:: Electric, Steam, Electric&Steam,Hot & Cold Water
Suspension: Spring & Airbag Suspension System Control: Micro Computer Control
Automatic: Automatic & Manual Voltage: 110v,220v,380v,400v,440v
Packing: Pallet Or Wooden Case Tilting: Front Tilting
High Light:

commercial laundry machines

,

industrial washer dryer

100kg 130kg Industrial laundry washing machine with front tilting function

Main Features
1. Adopt touch-type programmable computer control system, it is highly automatic, safe, stability and anti-shock.
2. Adopt the international latest complete suspension structure to reduce shock, Real meaing of free standing,No damage to machine while high spin.it can ensure an ideal anti-shock effect even on higher floors. Patented anti-vibration structure spring,shock absorption reaches to 95%(Patent no.200820056884.2)
3. It is with a drum without compartment and single door structure convenivent to loading or unloading, and reduces the labor intensity and improves the clean level.
5. The drum and case are both made of high quality stainless steel with the advantages of stain resistance and durability.Each drum tested by dynamic balance machine and the gravity deviation no more than 20g.                                                                                                                                            6. We adopt world famous qualified parts suppliers.like Japan Yaskawa inverter,MIT V-belts,American TWB bearings,French Schneider electric parts,Imported Viton seal makes no leakage,and so on to ensure the high quality.
7. We have got CE,IEC,ISO,SASO certificates.Our machines have been sold to USA, UK, Asia, Africa, Amecian, Canada, India and many other countries.
10. We provide good pre-sales and after-sales service.We can make the laundry layout drawing for the clients. and lifelong technology conulting service.Easy access to all parts for maintenance.
 11, The machines heating way have electric heating, steam heating and cold & hot water types.

PRODUCT FEATURES

Parameter

TYPEXGQ-15FIIXGQ-20FIIXGQ-25FIIXGQ-30FIIXGQ-50FIIXGQ-70FIIXGQ-100FIIXGQ-130FII
CAPACITY
Drum capacitykg152025305070100130
Drum volumeL16019525031554070810101300
Number of drums 11111111
Number ofloading doors 11111111
Number of unloading doors 11111111
DRUM SPEED
Washing speedrpm5048453736353432
Highest spin speedrpm800780750750720700680635
G-forcerpm230240250285300300300300
HEATING
Electrickw141821214246//
Steam ratiokg/kg0.90.90.90.90.90.90.90.9
CONNECTIONS
Water inlet ZG1.0"ZG1.0"ZG1.2"ZG1.5"ZG1.5"ZG1.5"ZG1.5"ZG2.0"
Steam inlet ZG3/4"ZG3/4"ZG3/4"ZG1.0"ZG1.0"ZG1.0"ZG1.0"ZG1.5"
DIMENTIONS
Widthmm9301000115014601610165017601950
Depthmm11001170122014401680196020902220
Heightmm15301560160018402040216019702175
