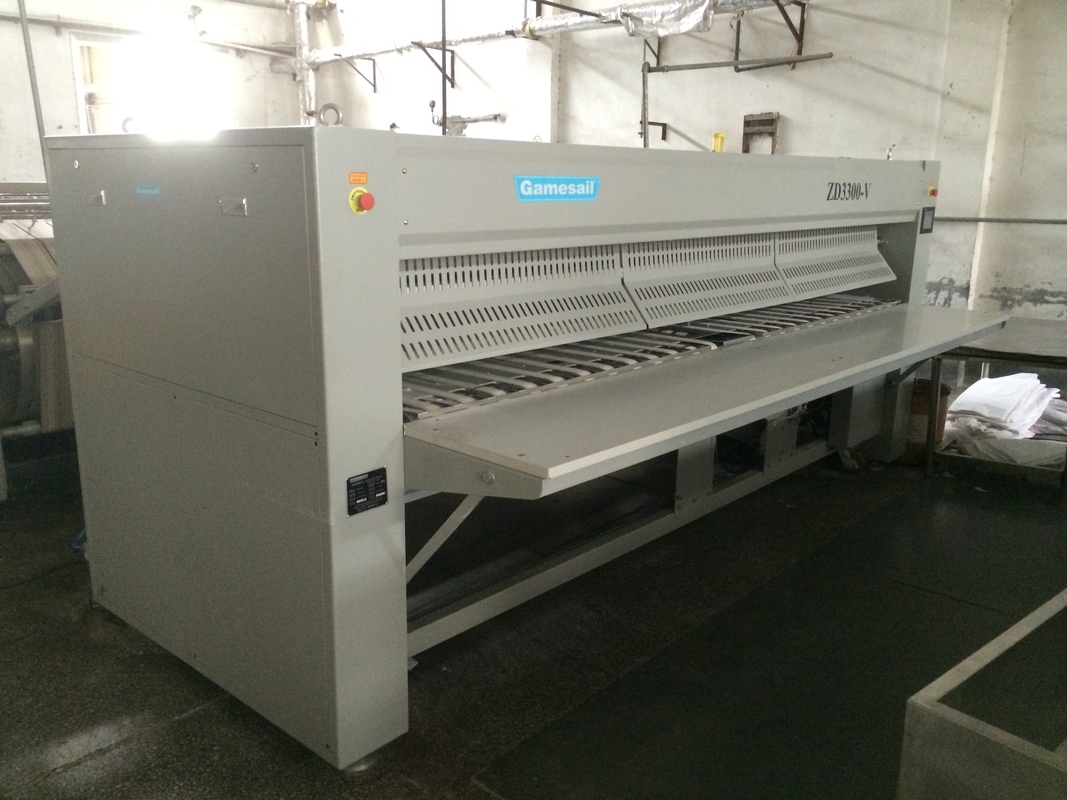

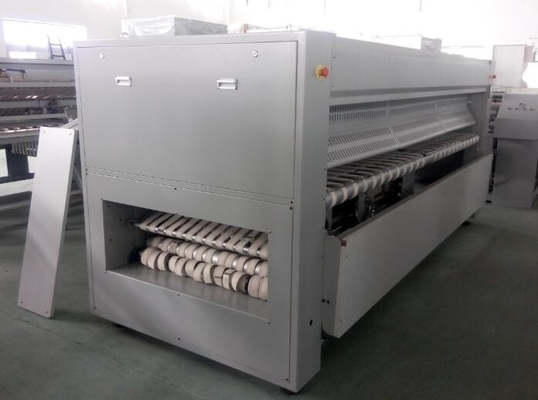

Computer Control Automatic Clothes Folding Machine , High Performance Clothes Folder Machine

Computer Control Automatic Clothes Folding Machine , High Performance Clothes Folder Machine

large.img.alt
small.img.alt small.img.alt

Large Image :  Computer Control Automatic Clothes Folding Machine , High Performance Clothes Folder Machine Get Best Price

Product Details:
Place of Origin: China Shanghai
Brand Name: Gamesail
Certification: CE,ISO9001
Model Number: ZD3000-V/ZD3300-V
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: 2000USD-30000USD
Packaging Details: Pallet or wooden case packing
Payment Terms: D/P, D/A, T/T, L/C, Western Union, MoneyGram
Supply Ability: 200PCS/Month
Detailed Product Description
Fold Scope: 3000x3300, 3300x3300 Fold Time: 5
Folding Speed: 10-50m/min Rated Voltage: 380V,400V,415V,440V,220V
Installation: 100% Free Standing HS Code: 8451500000
Operation: Full Automatic, Touch Screen
High Light:

clothes folding machine

,

automatic ironing and folding machine

Computer Control Automatic Clothes Folding Machine , High Performance Clothes Folder Machine



ADVANTAGE



. Variable setups for folding
. Adjust the speed and position automatically according to the length of cloth.
. Highly intelligentized touch screen ,display the operation status.
. Program freely according to the folding requirement
. Self-diagnosing system along with security protection system.
. Convenient for daily operation and maintenance.
. Eliminating static to improve the folding quality,credibility and stability.
. Korea LS inverter
. USB port microprocessor enables to reprogram freely&easily by PC.
. French Schneider electric parts. safety and reliable.
. Large drain valves and two drain connections available.
. Each drum tested by dynamic balance machine and the gravity deviation no more than 20g.
. 5 removable compartments Soap hoppers(above 30kg)
. Electric,steam heating.





PRODUCT FEATURES



Parameter

TYPE ZD3000-V ZD3300-V
FOLDING
Length mm 3300 3300
Width mm 3000 3300
Speed m/min 10-50 10-50
Folding layers L 5 5
MOTOR POWER kw 1.3 1.3
COMPRESSED AIR CONSUMPTION RATIO   0.2 0.2
DIMENTIONS
Size WxDxH mm 4340x3200x1700 4540x3200x1700
N.W. kg 1500 1600
