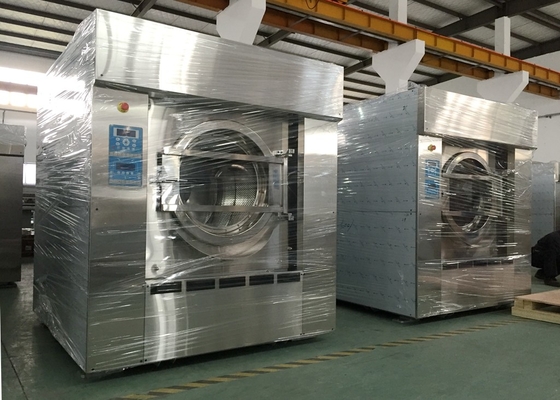

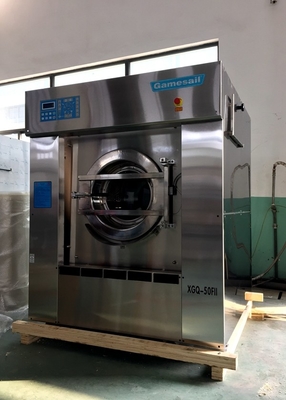

Energy Saving Single Door Hospital Laundry Equipment Big Size Stainless Steel SS304

Energy Saving Single Door Hospital Laundry Equipment Big Size Stainless Steel SS304

large.img.alt
small.img.alt small.img.alt

Large Image :  Energy Saving Single Door Hospital Laundry Equipment Big Size Stainless Steel SS304 Get Best Price

Product Details:
Place of Origin: China Shanghai
Brand Name: Gamesail
Certification: CE,ISO9001
Model Number: XGQ-FII
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Pallet or wooden case packing
Payment Terms: D/P, D/A, T/T, L/C, Western Union, MoneyGram
Supply Ability: 200PCS/Month
Detailed Product Description
Product: Washer Extractor HS: 8450201200
Material: SS304 Heating: Steam, Electric, Hot Water
Power: 220v, 380v, 415v, 440v Certificate: CE,ISO9001,ISO14001
High Light:

speed queen commercial dryer

,

washing machine and dryer

Airbag Suspension hospital washing machine ,washer dryer ,irroning machine

ADVANTAGE

. Patented anti-vibration structure spring,shock absorption reaches to 95%(Patent no.200820056884.2).Real meaing of free standing,No damege to machine while high spin.
. Japanese MIT V-belts, run smoothly.
. Japan Yaskawa inverter.
. Frequency controlled motor.
. American TWB bearings
. French Schneider electric parts. safety and reliable.
. Stainless steel cabinet and drum.
. Imported Viton seal makes no leakage.
. USB port microprocessor enables to reprogram freely&easily by PC.
. Easy access to all parts for maintenance.
. Large drain valves and two drain connections available.
. Each drum tested by dynamic balance machine and the gravity deviation no more than 20g.
. 5 removable compartments Soap hoppers(above 30kg)
. Electric,steam heating.

PRODUCT FEATURES

Parameter

TYPE XGQ-15FII XGQ-20FII XGQ-25FII XGQ-30FII XGQ-50FII XGQ-70FII XGQ-100FII XGQ-130FII
CAPACITY
Drum capacity kg 15 20 25 30 50 70 100 130
Drum volume L 160 195 250 315 540 708 1010 1300
Number of drums   1 1 1 1 1 1 1 1
Number ofloading doors   1 1 1 1 1 1 1 1
Number of unloading doors   1 1 1 1 1 1 1 1
DRUM SPEED
Washing speed rpm 50 48 45 37 36 35 34 32
Highest spin speed rpm 800 780 750 750 720 700 680 635
G-force rpm 230 240 250 285 300 300 300 300
HEATING
Electric kw 14 18 21 21 42 46 / /
Steam ratio kg/kg 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9
CONNECTIONS
Water inlet   ZG1.0" ZG1.0" ZG1.2" ZG1.5" ZG1.5" ZG1.5" ZG1.5" ZG2.0"
Steam inlet   ZG3/4" ZG3/4" ZG3/4" ZG1.0" ZG1.0" ZG1.0" ZG1.0" ZG1.5"
DIMENTIONS
Width mm 930 1000 1150 1460 1610 1650 1760 1950
Depth mm 1100 1170 1220 1440 1680 1960 2090 2220
Height mm 1530 1560 1600 1840 2040 2160 1970 2175




Gamesail Introduction:


Located in the Shanghai,a beautiful city in China, Shanghai Gamesail washing machine CO.,LTD owns many factory buildings,covering an area of 12000 square meters. Founded in early 2002, with years efforts, we have developed a variety of machine series including washing machine, dryer, ironing, folder,dry cleaning machine and other related auxiliary equipment, making the total variety exceeding 70. We are capable of providing diversified solutions to our customers to meet their different needs. Our Gamesail attaches great importance to the innovation and development of technology, the advantage of which comes as our core competence. We have a superior engineering and technique team, among which are our own technicians with over 20 years professional designing experience and world renowned experts in designing washing machines. Additionally, our products are under the product quality management system of ISO9001and European Union CE along with the ISO14001 environment management system.

Product Range:

Washer Extractor (15kg-150kg)
Tumble Dryer (15kg-100kg)
Flawork Ironer (1500mm - 3300mm width, 1-5 roller)
Folding Machine (3300mmx3300mm)
Dry Cleaning Machine (6kg-45kg)
Barrier Washer (30kg-120kg)
Horizontal Washer (35kg-250kg)
Extractor (15kg-100kg)
Finishing Equipment : ironing table, spotting table, garment finisher, press machine, etc.

Why choose Gamesail ?

Energy saving philosophy
Gamesail has a researching and developing team with rich professional technology, among which are our technicians of over 20 years professional designing experience and internationally famous designing experts, through learning from advanced international technology, we never stop the pace of innovation and have succeeded in designing the G series production with our own characteristics. This type of machine enjoys the superiority of advanced designs, low energy consumption, shorter washing period and will lead an industrial innovative trend.

Superior Quality
Leading technology and complete production system are two footstones of us, As quality enjoys the best priority in Gamesail. We have set our goal as building the first rate quality, establishing scientific quality concept and have formulated strict quality management regulations, We have been certificated by ISO9001 international quality management system, European Union CE system, and ISO14001 environment management system. With superior quality, our product boasts its longer service life than other products in such field.

Competitive Price
Holding the tenet of sustainable development and win-win result with our cooperators, we always set our goal as: to be the first in cost-performance. Our products rank high in quality and service life, for which we are chosen by countless customers. However, our price I customer friendly, which ends in our superior cost performance. That best answers why we enjoy great popularity in our customers.


FAQ:

Q: Our power supply is 440V, can you provide?
A: Yes, we will customize the motor according to your requirement.

Q: What's your lead time.
A: 7-30 days

Q: Can you provide oversea technical service?
A: Yes, no problem, our technician can fly to your country and provide training.
