Name: | Press Machine | Heating Type: | Steam |
---|---|---|---|
Automatic: | Automatic & Manual | Rated Voltage: | 380V,400V,415V,440V,220V |
HS Code: | 8451300000 | Rated Power: | 1.1kw |
Highlight: | industrial ironing machine,automatic cloth ironing machine |

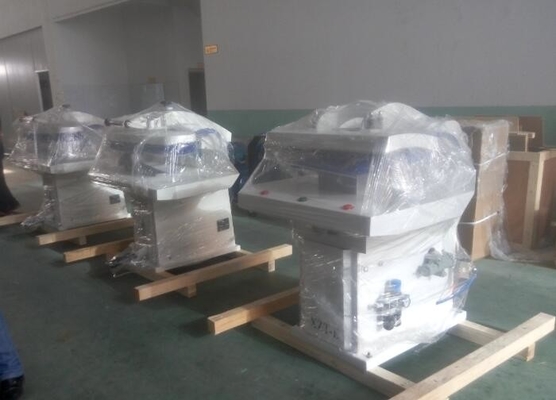

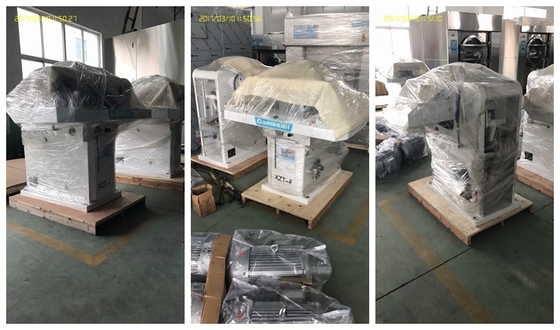

Steam Heated Mushroom-shaped Laundry Press Ironing Machine For Dry Cleaning Shop
Dry Cleaning Clamping Machine XZT-H
This type of dry cleaning clamping machine can be used in ironing seams of trousers’ legs and be matched with woolen ironing table.
Washing Clamping Machine XZT-F
This type of clamping machine aims at the clothes like uniforms and shirts that require high quality of style-maintenance.
Collar and Sleeve Clamping Machine XZT-L
This collar and sleeve clamping machine is easy to operate. In a single piece of operation, the collar and one sleeve can be ironed and the next time the shoulder part and rest sleeves can be finished. Thus, this type of machine is quite efficient.
Mushroom-shaped Press XZT-Q
This type of machine is suitable for some corner parts of the clothe like the trousers’ head, short sleeve, etc.
Type/Parameter | XZT-H | XZT-F | XZT-L | XZT-Q |
Rated Voltage (V/Hz) | 380/50 | 380/50 | / | 380/50 |
Rated Power(kW) | 1.1 | 1.1 | / | 1.1 |
Steam Pressure(Mpa) | 0.4-0.5 | 0.4-0.5 | 0.4-0.6 | 0.4-0.5 |
Steam Consumption(Kg/H) | 25 | 15-20 | 15 | 13-15 |
Diameter of Steam Pipe(Inch) | G1/2” | G1/2” | G1/2” | G1/2” |
Air Pressure(Mpa) | 0.35-0.4 | 0.35-0.4 | 0.4-0.5 | 0.35-0.4 |
Compressed Air Joint Dimensions (mm) | Φ6 | Φ6 | Φ6 | Φ6 |
Boundary Dimension | ||||
Width (mm) | 1350 | 1400 | 1400 | 1400 |
Length (mm) | 1100 | 1280 | 1280 | 1000 |
Height (mm) | 1400 | 1240 | 1240 | 1240 |
Weight (Kg) | 300 | 250 | 250 | 300 |
Shanghai Gamesail Washing Machine CO.LTD was prepared at the beginning of 2002. During two years preparations, we researched more than 70 varieties washing equipments, including washing extractor series, drying equipment series, ironing equipment series, dry-cleaning equipment, related auxiliary equipment, etc. In 2004, we officially provided these equipments for the market.
Our company has a team of engineering technical personnel who have rich professional knowledge and be engaged in washing equipment design for 20 years. International famous experts have developed industrial washing machine series to conform international trend and to meet China's national conditions according to their understanding of technology and applications both in China and abroad.
Gamesail pursues that It will always be the supplier who provides best cost performance commercial washing equipments in China.
Gamesails quality: Standing on a user's point of view, "Think for the user; plan for the user. From design, trial-manufacture, small batch production, mass production to equipment commissioning and operator training are so integrated into the human thoughts and ideas, reflecting Gamesail's "service concept."
